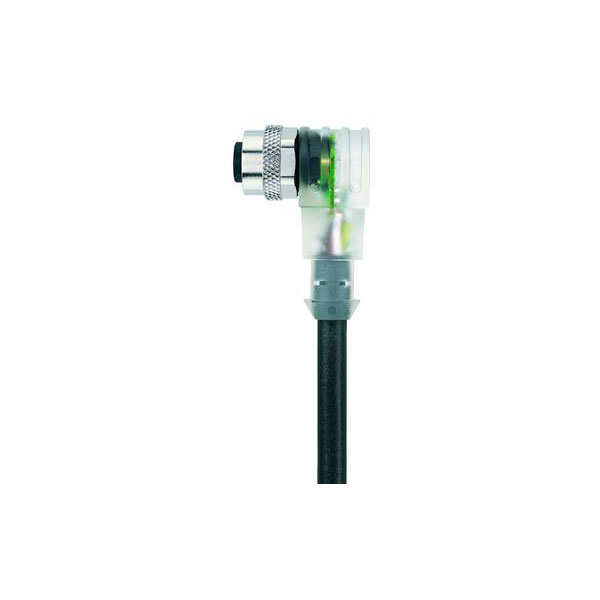

Escha 8045238 AL-WWAK4P2-5/S370 5m Angled M12 Cable Assembly

Escha manufactures the 8045238 AL-WWAK4P2-5/S370, a sensor/actuator pre-fabricated connector. It features robust construction suitable for harsh environments, ensuring reliable signal transmission. This connector is typically used in industrial automation systems for quick and secure connections.

Connector 1	Cable, open end
Connector 2	Customisable
Colour	Black
Length	5m
Type	Sensor connector
Coding	A
Conductor Cross Section	0.34mm²
Connection	Open end cable
Cross-section (sensor/actuator wiring)	0.34mm²
IP Rating	IP67/IP69K
Material	PUR
Maximum Temperature	+90°C
Min. temperature	-30°C
Misc Attribute	AL-WWAK4P2-5/S370
Nominal Current	2A
Nominal Voltage	30V
Seal Type	Screw-on
Thread Type	M12
