Erni 284258 Edge Connector 96 Pins 3 Rows 0.635mm Pitch Soldering

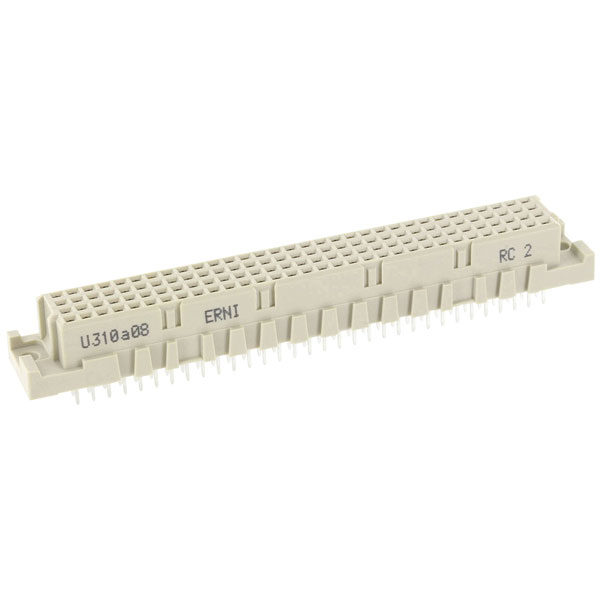

Image Representative of Range

Erni 284258 Edge Connector 96 Pins 3 Rows 0.635mm Pitch Soldering

Erni
Order Code:

09-0991

Brand: Erni MPN: 284258 EAN-13: 2050001952097
Qty Unit Price (Ex VAT)
1+ £8.66
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
72 in stock, despatched in 4 working days

The ERNI 284258 edge connector is a component with 96 pins arranged in 3 rows. Manufactured by ERNI, this connector is ideal for ensuring reliable electrical connections in electronic assemblies. It is commonly used in telecommunications and data systems for efficient signal transmission.
Type Edge connector (sockets)
Number of Positions 3
Contact Plating Copper alloy
Case Material PBT GF
Certification marks DIN 41612
Colour Light grey
Configuration (a+b+c)
Connection Print
Connector orientation Parallel (to the PCB)
Contact surface Gold plated
CS 2.54mm
Dimensions (L x W x H) 10.6 x 94 x 17.58 mm
DIN Standard R
Height 17.58mm
Length 10.6mm
Max. temperature +125°C
Min. temperature -55°C
Nominal Current 2A
Pin Length 3mm
Resistance max. 20 AmΩ
Width 94mm
