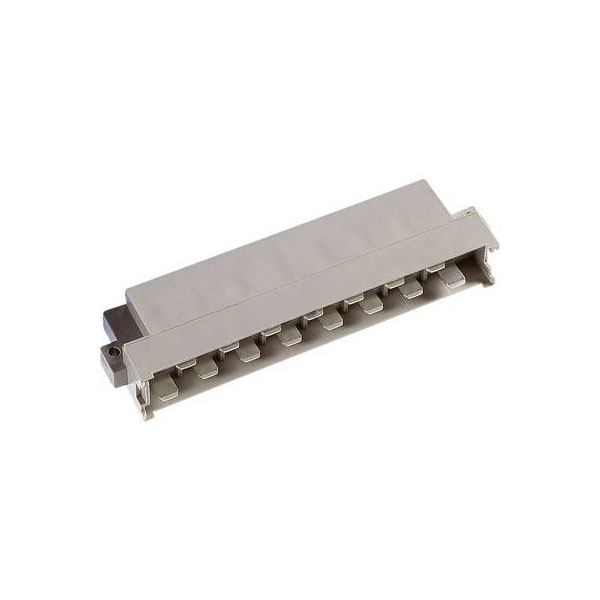

ept 113-40160 Edge Connector 15 Pins 2 Rows DIN 41612 Compliant

ept edge connector 113-40160 features 15 pins across two rows. This component is designed for secure and efficient electrical connections. Typical applications include use in data communication and electronic devices.

Type	Edge connector (pins)
Number of Positions	2
Mounting Angle	Edge
Pitch	5.08mm
Case Material	PBT, UL94V-0
Certification marks	DIN 41612
Colour	Light grey
Configuration	(z+d)
Connection	Print
Connector orientation	Parallel (to the PCB)
Contact Plating	Copper alloy
Contact surface	Tin plated
Dimensions	(L x W x H) 14.7 x 94 x 25.1 mm
DIN Standard	H15
Height	25.1mm
Length	14.7mm
Mating cycles	500
Maximum Temperature	+125°C
Min. temperature	-55°C
Nominal Current	15A
Nominal Voltage	3100V
Number of pins	15
Resistance	<8mΩ
Width	94mm
