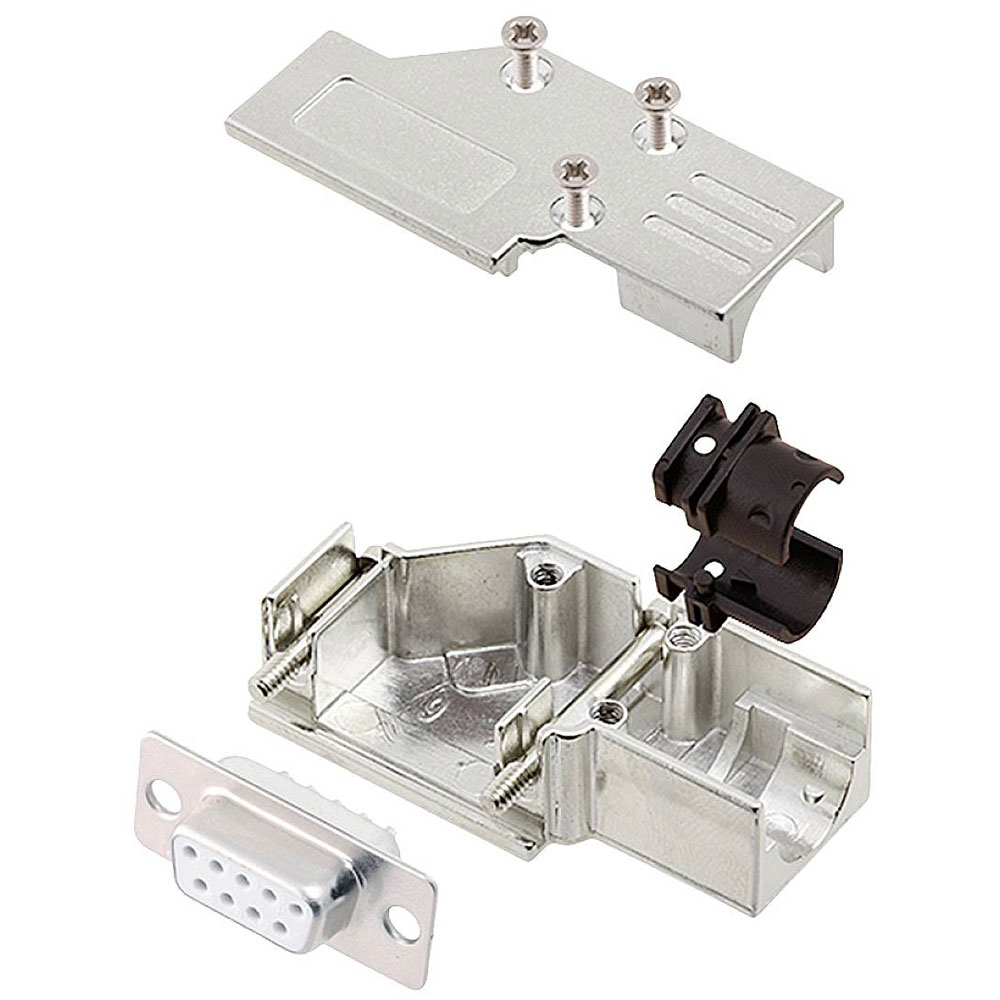

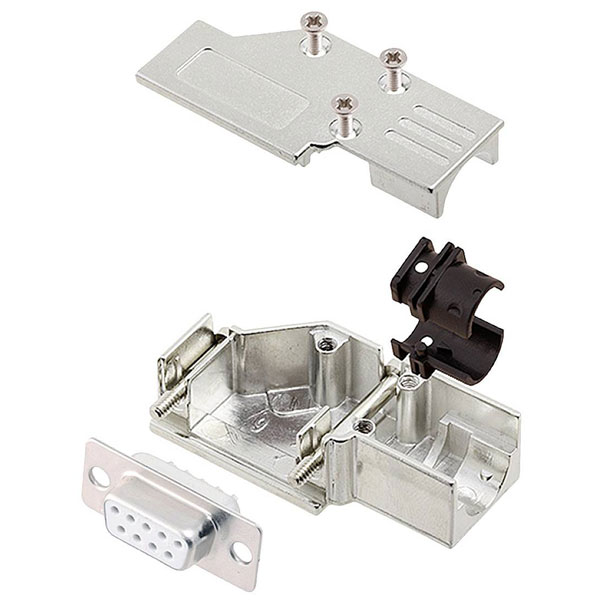

Encitech 6355-8065-11 D-Sub Receptacle set 90° 9 Pins Solder Bucket

Encitech manufactures the DCMR09-FK-DBS-W-K D-SUB receptacle set with 9 solder bucket pins, designed for secure and reliable data connections. This 90° angle connector is well-suited for use in electronic equipment and communication devices. It is ideal for applications requiring robust, stable connections with minimal installation space.

Type	D-SUB receptacle set
Plug / Socket	Power strip, straight
Mounting Type	Solder bucket
No. of Ways	9
Mounting Direction	90 Degree
Connection Angle	90°
Plating Material	Gold plated
Contact Material	Copper alloy
Contact Type	Punched contacts
Factory colour	Nickel-coated
Material (details)	Zinc diecasting
Mating cycles	100
Misc Attribute	DCMR09-FK-DBS-W-K
No. of Rows	2
Number of pins	9
Temperature Range	-40 °C to 105°C
