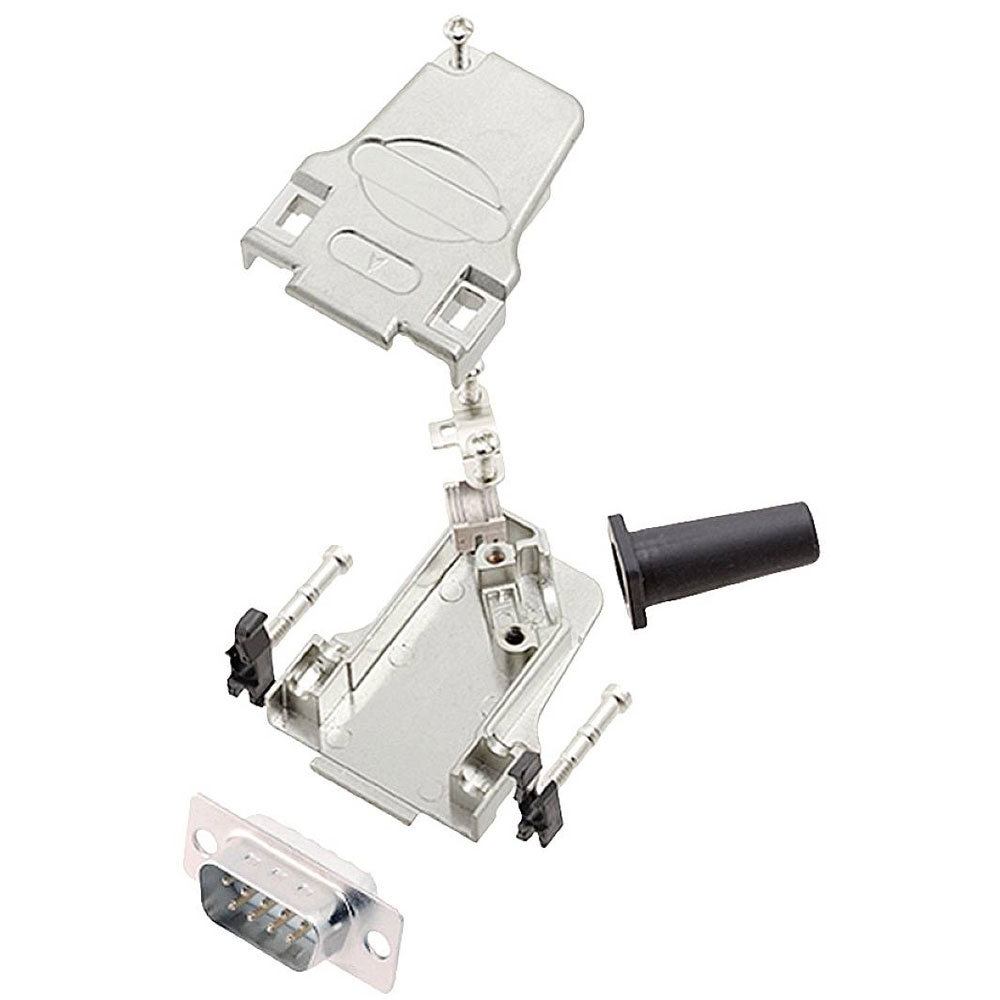

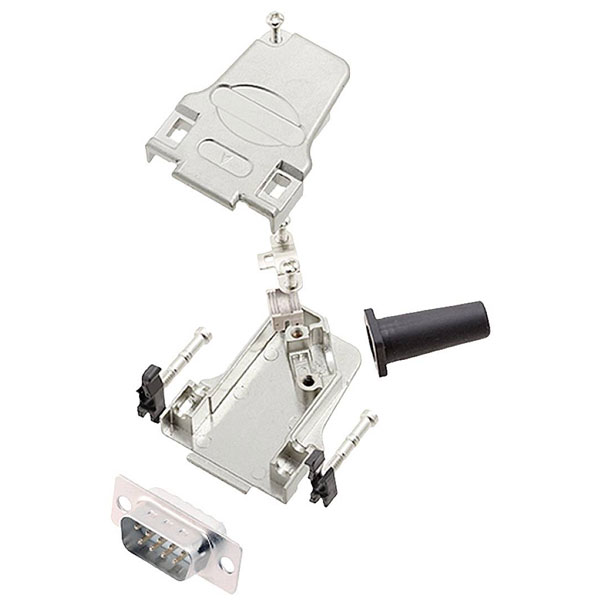

Encitech 6355-8047-01 D-Sub Pin Strip Set 45° 9 Pins Solder Bucket

The Encitech D45ZF09-DMP-W-K 6355-8047-01 is a D-SUB pin strip set featuring 9 pins and a solder bucket configuration. This versatile connector is suitable for use in electronic and communication equipment where a robust and reliable connection is required. It is commonly employed in areas like computer interfaces and networking equipment.

Type	D-SUB pin strip set
Plug / Socket	Pin strip, straight
Mounting Type	Solder bucket
No. of Ways	9
Mounting Direction	45 Degree
Connection Angle	45°
Plating Material	Gold plated
Contact Material	Copper alloy
Contact Type	Machined contacts
Factory colour	Nickel-coated
Material (details)	Zinc diecasting
Mating cycles	500
Misc Attribute	D45ZF09-DMP-W-K
No. of Rows	2
Number of pins	9
Temperature Range	-45 °C to 105°C
