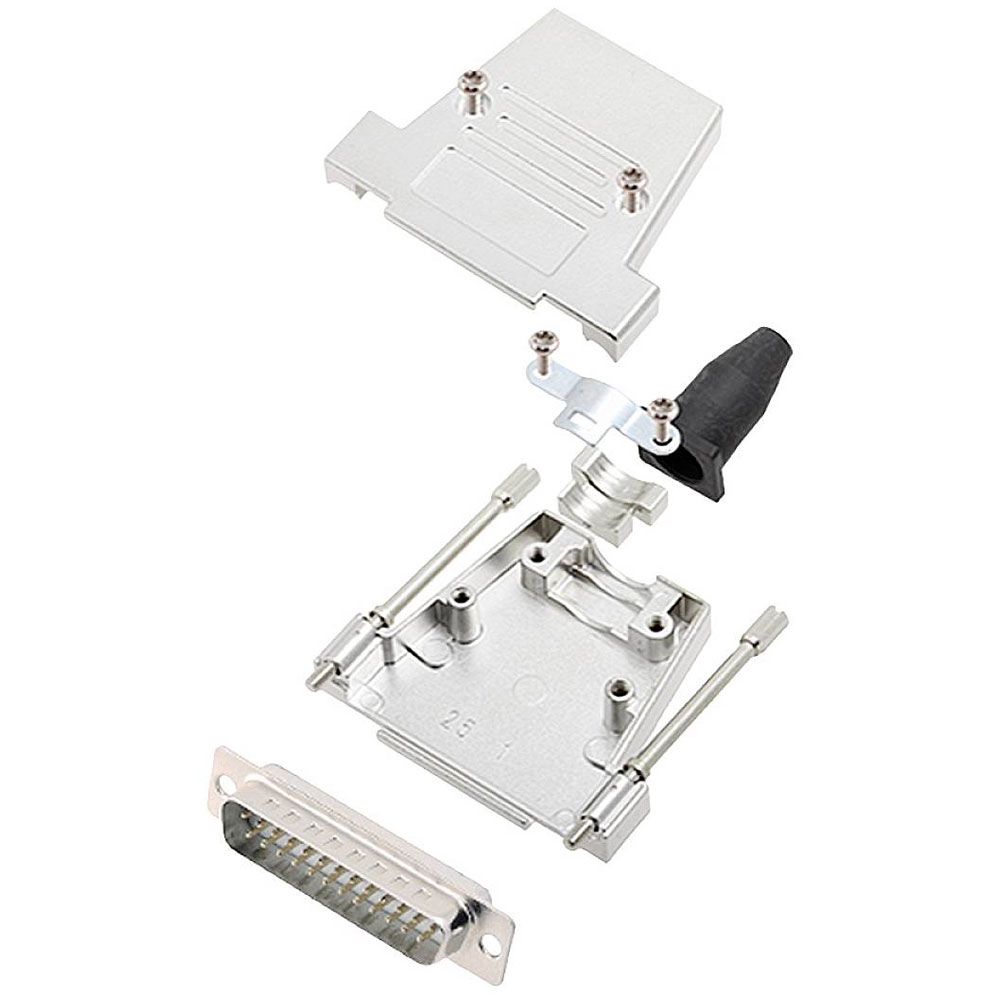

Encitech 6355-8040-23 DTSL25 Pin Strip set 25 Pins Solder Bucket

The Encitech DTSL25-LJSRG-T-DMP-W-K model is a D-SUB pin strip set with 25 pins, designed for solder bucket connections. Encitech's D-SUB connectors are typically used in telecommunications and data transfer applications due to their reliable connection capabilities. The product is a single-piece solution offering durability and ease of installation.

Type	D-SUB pin strip set
Plug / Socket	Pin strip, straight
Mounting Type	Solder bucket
No. of Ways	25
Mounting Direction	Straight
Connection Angle	180°
Plating Material	Gold plated
Contact Material	Copper alloy
Contact Type	Machined contacts
Factory colour	Nickel-coated
Material (details)	Zinc diecasting
Mating cycles	500
Misc Attribute	DTSL25-LJSRG-T-DMP-W-K
No. of Rows	2
Number of pins	25
Temperature Range	-40 °C to 105°C
