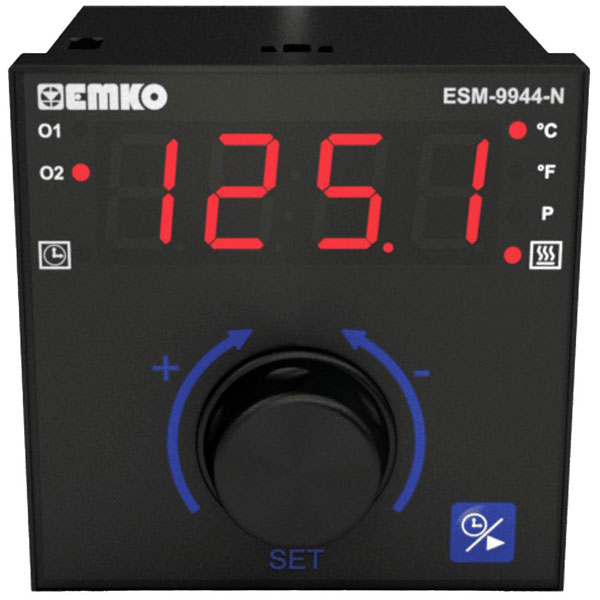

Emko ESM-9944-N Temperature Controller with Timer Buzzer Dial Pt100

The Emko ESM-9944-N is a temperature controller designed for precise temperature management with capabilities for Bang-bang, P, PI, PD, and PID control. It features compatibility with Pt100 sensors and can operate within a temperature range of -200 to +1700 °C, offering a 5 A relay in a compact 100 x 96 x 96 mm housing. Typical applications include industrial processes requiring accurate temperature regulation, such as manufacturing and laboratory environments.

Type	Temperature controller
Dim	(L x W x H) 100 x 96 x 96 mm
Factory colour	Black
Height	96mm
IP Rating	Front: IP65 / connection: IP20
Length	100mm
Min. temperature reading	-200°C
Misc Attribute	ESM-9944-N
Mounting Type	Recess-mount
Number of relay outputs	2
Outputs (thermostats)	5 A relay
Reading range	-200 up to +1700 °C
Temperature reading range (max.)	+1700°C
Thermostat type	Bang-bang, P, PI, PD, PID
Width	96mm
