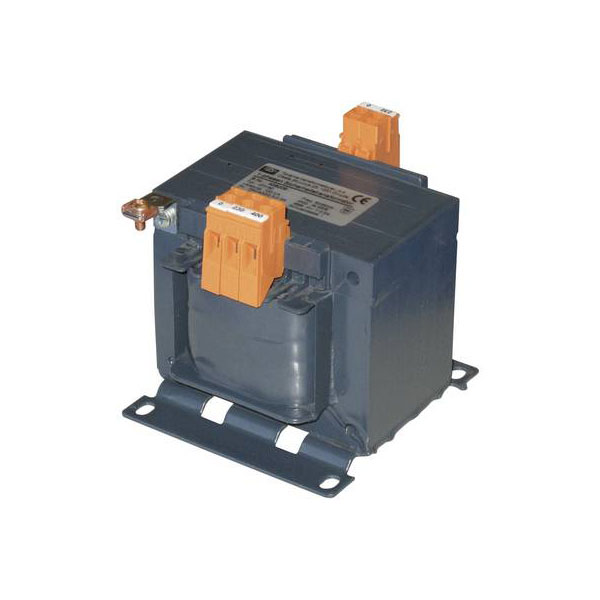

Elma TTIZ3182 Isolation Transformer 230V 250VA 1.10A Welded Base Plate

The Elma TT IZ3182 is an isolation transformer designed for automation and safety applications. It provides a 1 x 230 V to 400 V output with a power capacity of 250 VA and a current of 1.10 A. This transformer is commonly used in universal transformer and power transformer setups.

Type	Isolation transformer
Secondary Voltage	230V AC
Power Rating	250VA
Connection	Screw terminal
Current Rating	1.10A
Design Type	Open
Dimensions	(L x W x H) 96 x 105 x 102 mm
Frequency Range	50 - 60Hz
Height	102mm
Insulation class	Ta40/B
Length	96mm
Mounting Type	L-piece
Number of Inputs	1
Number of Outputs	1
Primary Voltages	1 x 230 V, 400 V
Standards	IEC 61558-2-4, VDE 0570 Part 2-4
Weight	3.55kg
Width	105mm
