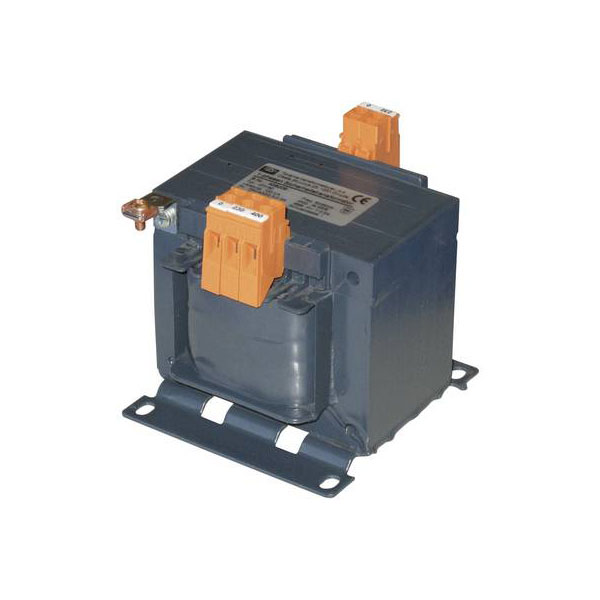

Elma TT IZ3175 Safety Transformer 230V-24V AC 250VA Terminals Earth Welded

The Elma TT IZ3175 is a safety transformer designed to convert 230 V or 400 V mains voltage to 24 V AC, delivering 250 VA with a current of 10.42 A. It is used primarily in automation and power applications, ensuring safe voltage transformation. Elma TT produces this transformer with a focus on safety and reliability for both industrial and domestic environments.

Type	Safety transformer
Secondary Voltage	24V AC
Power Rating	250VA
Connection	Screw terminal
Current Rating	10.42A
Design Type	Open
Dimensions	(L x W x H) 96 x 105 x 102 mm
Frequency Range	50 - 60Hz
Height	102mm
Insulation class	Ta40/B
Length	96mm
Mounting Type	L-piece
Number of Inputs	1
Number of Outputs	1
Primary Voltages	1 x 230 V, 400 V
Standards	IEC 61558-2-6, VDE 0570 Part 2-6
Weight	3.6kg
Width	105mm
