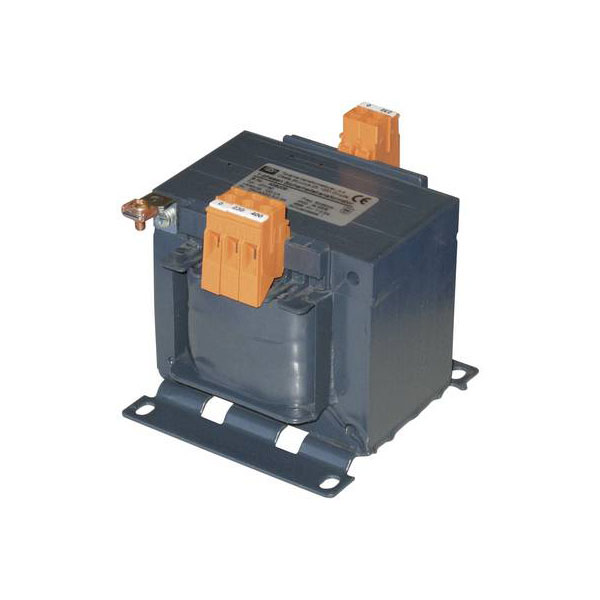

Elma TT IZ3173 Safety Transformer 230V/400V to 24V AC 100VA Terminals

The Elma TT IZ3173 is a safety transformer that converts 230 V/400 V input to a 24 V AC output with a capacity of 100 VA and 4.17 A. This product is typically used in automation and power applications where a reliable and safe power source is needed. As a mains transformer, it ensures safe voltage reduction for sensitive equipment and processes.

Type	Safety transformer
Secondary Voltage	24V AC
Power Rating	100VA
Connection	Screw terminal
Current Rating	4.17A
Design Type	Open
Dimensions	(L x W x H) 84 x 76 x 94 mm
Frequency Range	50 - 60Hz
Height	94mm
Insulation class	Ta40/B
Length	84mm
Mounting Type	L-piece
Number of Inputs	1
Number of Outputs	1
Primary Voltages	1 x 230 V, 400 V
Standards	IEC 61558-2-6, VDE 0570 Part 2-6
Weight	1.9kg
Width	76mm
