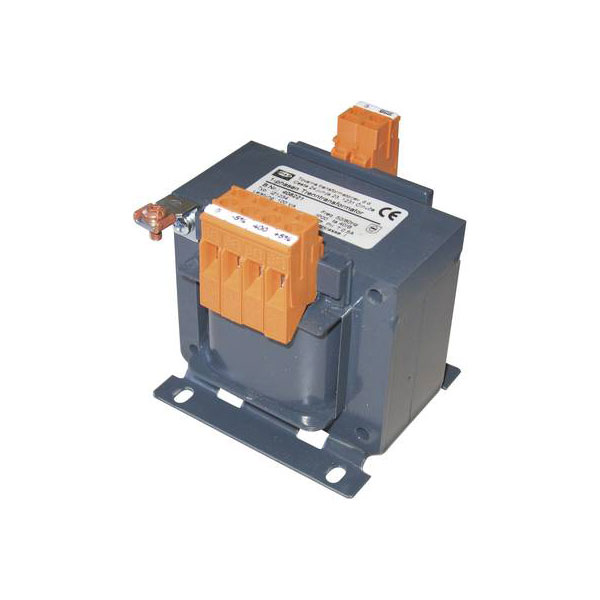

Elma TT IZ1239 Isolation Transformer 400V/230V AC 400VA 1.74A Voltage Control

The Elma TT IZ1239 isolation transformer is designed to convert 400 V to 230 V AC with a power capacity of 400 VA and a current rating of 1.74 A. It serves as a safety transformer, ensuring the separation of circuits, commonly used in automation systems. This product is ideal for applications requiring reliable power transformations and electrical isolation to enhance safety and performance.

Type	Isolation transformer
Primary Voltages	1 x 400 V
Secondary Voltage	230V AC
Power Rating	400VA
Connection	Screw terminal
Current Rating	1.74A
Design Type	Open
Dimensions	(L x W x H) 120 x 104 x 122 mm
Frequency Range	50 - 60Hz
Height	122mm
Insulation class	Ta40/B
Length	120mm
Mounting Type	L-piece
Number of Inputs	1
Number of Outputs	1
Standards	IEC 61558-2-4, VDE 0570 Part 2-4
Weight	5kg
Width	104mm
