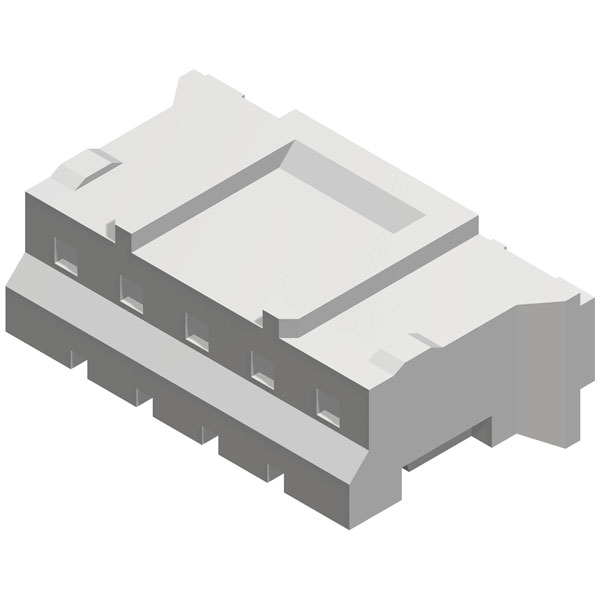

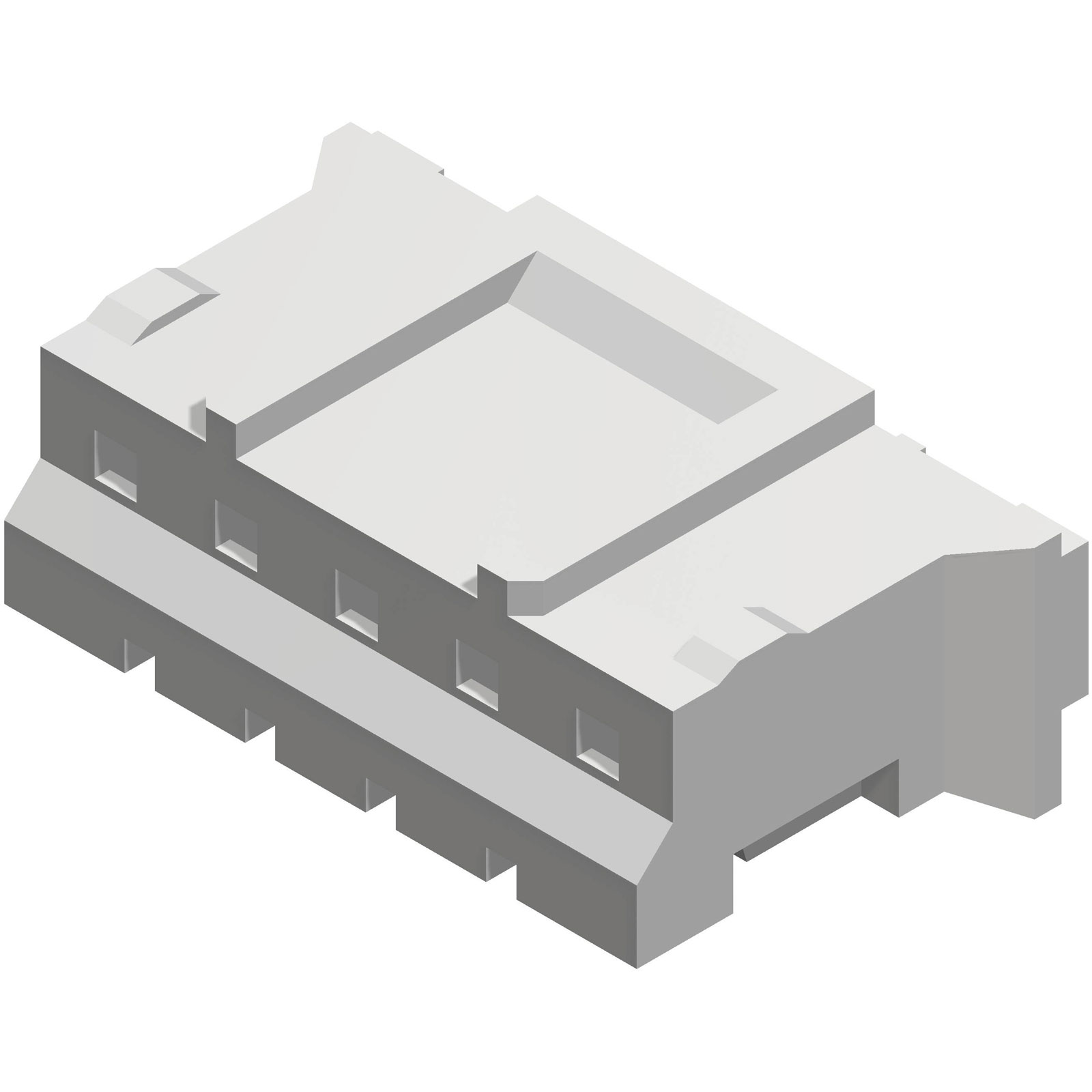

EDAC 140-505-210-011 Socket Housing 5 Pins 2 mm Spacing 1 piece

The EDAC 140-505-210-011 socket housing cable features a total of five pins with a contact spacing of 2 mm. This component, manufactured by EDAC, is well-suited for applications requiring reliable cable-to-board connections. Typical uses include electronic devices where compact and secure pin arrangement is essential.

Type	Socket housing cable
Pitch	2mm
Number of Ways	5
Number of Rows	1
Mounting Type	Cable mount
Mounting Direction	Straight
Case Material	PA 66 UL94V-0
CS	2mm
Current Rating	2A
Factory colour	Grey
Maximum Temperature	85°C
Min. temperature	-25°C
Nominal Voltage	100V DC/AC
Pins per row	5
Total number of pins	5
