econ connect W33R4 Pin Strip 1 row 4 pins bulk 1pc

econ connect
Standard range
Order Code:

02-7737

Brand: econ connect MPN: W33R4
Qty Unit Price (Ex VAT)
1+ £0.046
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
22 in stock, despatched in 4 working days

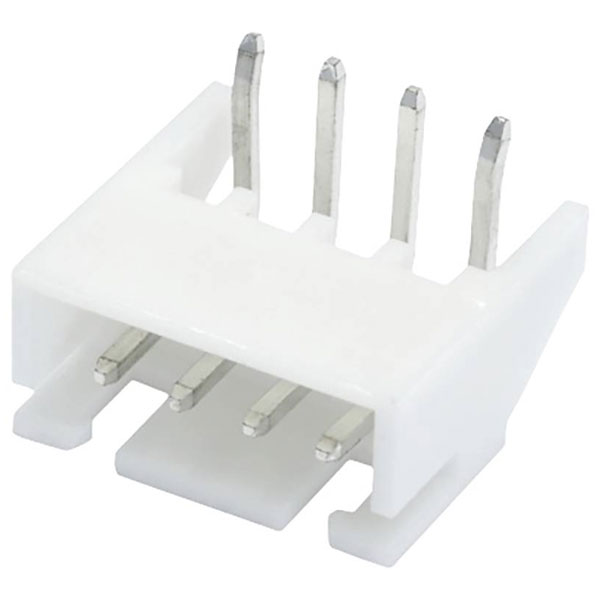

The econ connect W33R4 pin strip (standard) features a single row with four pins. Manufactured by econ connect, this component is typically used for connecting circuit boards in electronic projects. It is available in bulk as a single-piece purchase.
Case material Nylon (NL)
Connection Solder pins
Connector orientation Parallel (to the PCB)
Connector type Pin strip, right angle
Contact material Brass
Contact surface Tin plated
CS 2.5mm
Dim (W x H) 5.85 mm x 11.2 mm
Factory colour White
Height 11.2mm
Manufacturer part # W33R4
Max. temperature 85°C
Min. temperature -25°C
Misc Attribute W33R4
No. of rows 1
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 250V
Packaging type Bulk
Pin length (PCB) 3.4mm
Pin shape Square
Pins per row 4
Separable No
Total number of pins 4
Type Pin strip (standard)
Width 5.85mm
