econ connect PV34GROZ Pin Connector 34 pins 2 rows 2.54mm spacing tray

econ connect
Standard range
Order Code:

02-7581

Brand: econ connect MPN: PV34GROZ
Qty Unit Price (Ex VAT)
1+ £0.408
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
64 in stock, despatched in 4 working days

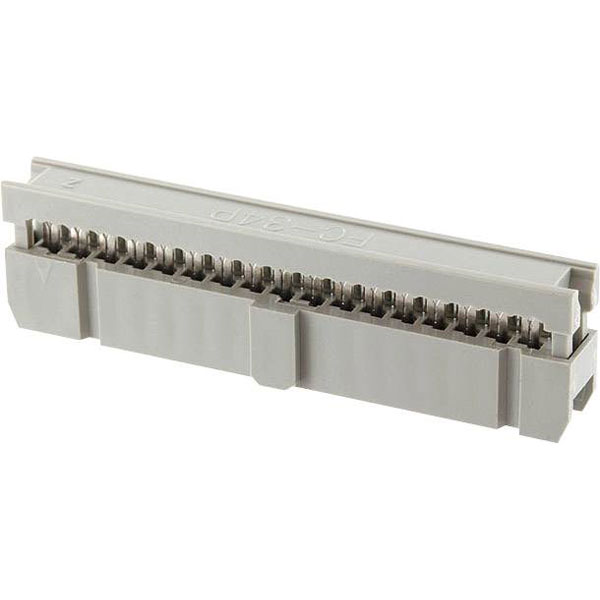

The econ connect PV34GROZ pin connector features 34 pins with a 2.54 mm contact spacing arranged in 2 rows. This robust component is ideal for use in electronic circuitry and prototyping applications where reliable connections are essential. Typically, it comes packaged in a tray for easy handling and installation.
No. of rows 2
Board contact surface Gold plated
Case material PBT
Connection Cut & Clip
Connector contact surface Gold plated
Connector orientation Perpendicular (to the PCB)
Connector type Power strip
Contact material Brass
CS 2.54mm
Dim (L x W x H) 7 x 47.88 x 10.5 mm
Factory colour Grey
Height 10.5mm
Length 7mm
Manufacturer part # PV34GROZ
Max. temperature +105°C
Min. temperature -40°C
Misc Attribute PV34GROZ
Nominal current 1A
Nominal voltage 500V AC
Packaging type Tray
Pins per row 17
RoHS-compliant Yes
Total number of pins 34
Type Pin connector
Width 47.88mm
