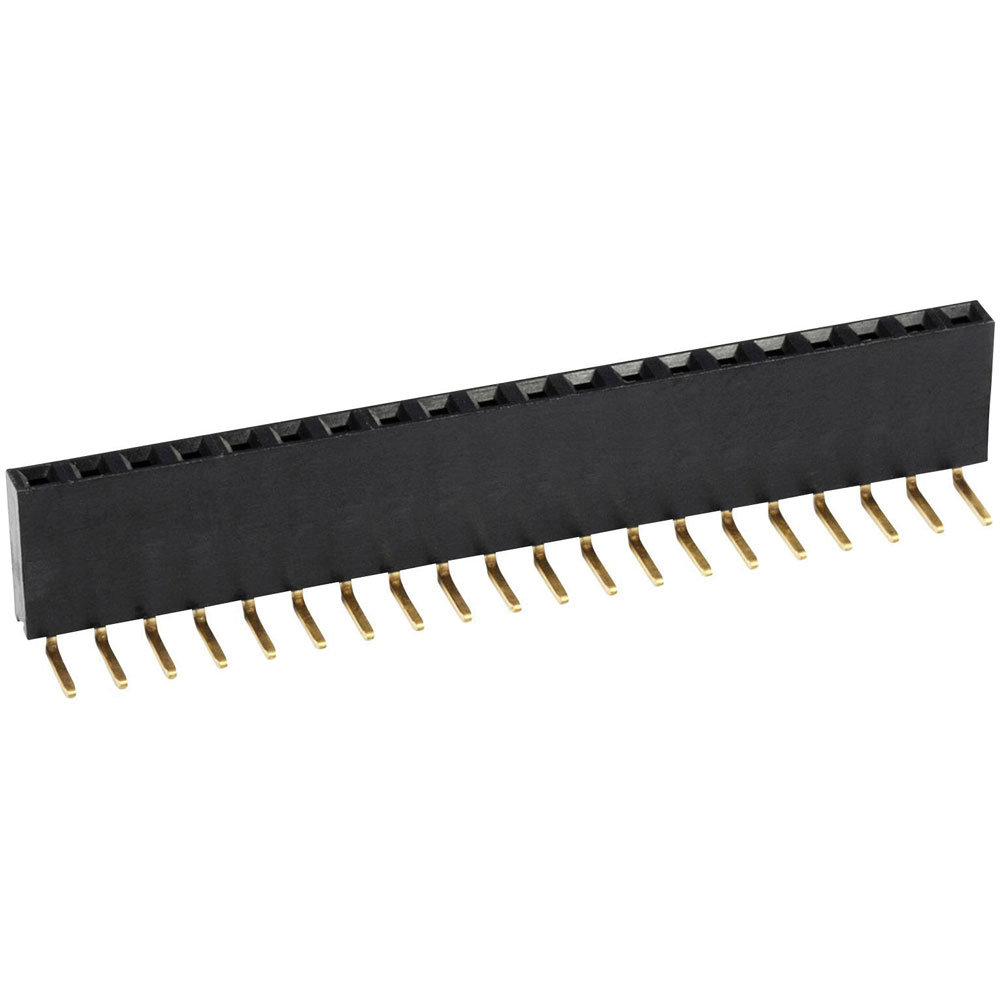

econ connect BLW1X16 SIL Socket 1x16 standard 16 pins per row

Image Representative of Range

econ connect BLW1X16 SIL Socket 1x16 standard 16 pins per row

econ connect
Standard range
Order Code:

02-7046

Brand: econ connect MPN: BLW1X16
Qty Unit Price (Ex VAT)
1+ £0.277
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
994 in stock, despatched in 4 working days

The econ connect SIL Socket (standard) No. of rows: 1 Pins per row: 16 BLW1X16 features a single row of 16 pins for efficient and straightforward connections. This receptacle is suitable for use in applications requiring robust electrical connections, such as prototyping and electronic circuit boards. Manufactured by econ connect, it is used for standard interfacing tasks in various electronic projects.
Case material PBT, UL94V-0
Connection Print
Connector orientation Parallel (to the PCB)
Connector type Power strip, right angle
Contact material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 41.14 x 41.14 x 8.5 mm
Factory colour Black
Height 8.5mm
Industrial packaging No
Length 41.14mm
Manufacturer part # BLW1X16
Max. temperature 105°C
Min. temperature -40°C
Misc Attribute BLW1X16
No. of rows 1
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 1000V AC
Pin length (PCB) 3.50mm
Pin Ø 0.64mm
Pin shape Rectangular
Pins per row 16
RoHS-compliant Yes
Separable No
Total number of pins 16
Type Receptacles (standard)
Width 41.14mm
