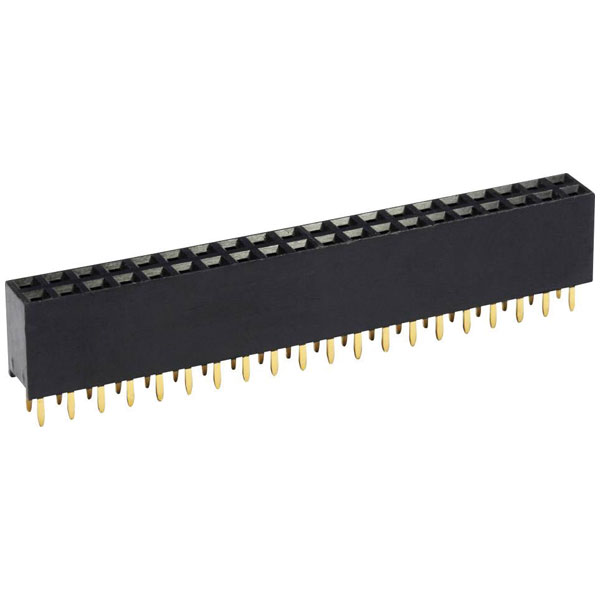

econ connect BLG2X23 SIL Socket 2 rows 23 pins standard 1pc

Image Representative of Range

econ connect BLG2X23 SIL Socket 2 rows 23 pins standard 1pc

econ connect
Standard range
Order Code:

02-7024

Brand: econ connect MPN: BLG2X23
Qty Unit Price (Ex VAT)
1+ £0.692
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
499 in stock, despatched in 4 working days

The econ connect SIL socket, model BLG2X23, is manufactured by econ connect and features 2 rows with 23 pins per row. It is a standard receptacle ideal for connecting electronic components in various circuits. Commonly used in prototyping and testing environments, this socket ensures reliable connections in electronic assemblies.
Case material PBT, UL94V-0
Connection Print
Connector orientation Perpendicular (to the PCB)
Connector type Power strip, straight
Contact material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 58.92 x 58.92 x 8.5 mm
Factory colour Black
Height 8.5mm
Industrial packaging No
Length 58.92mm
Manufacturer part # BLG2X23
Max. temperature 105°C
Min. temperature -40°C
Misc Attribute BLG2X23
No. of rows 2
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 1000V AC
Pin length (PCB) 3.15mm
Pin Ø 0.64mm
Pin shape Rectangular
Pins per row 23
RoHS-compliant Yes
Separable No
Total number of pins 46
Type Receptacles (standard)
Width 58.92mm
