econ connect BLG1X17 SIL Socket 1 row 17 pins 1pc standard

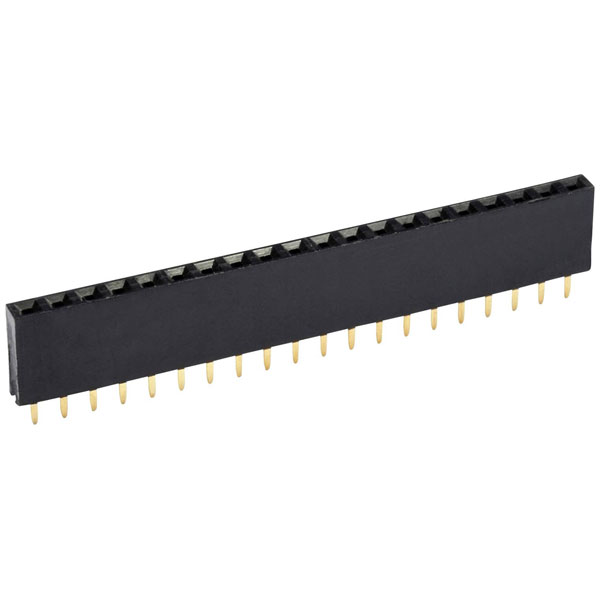

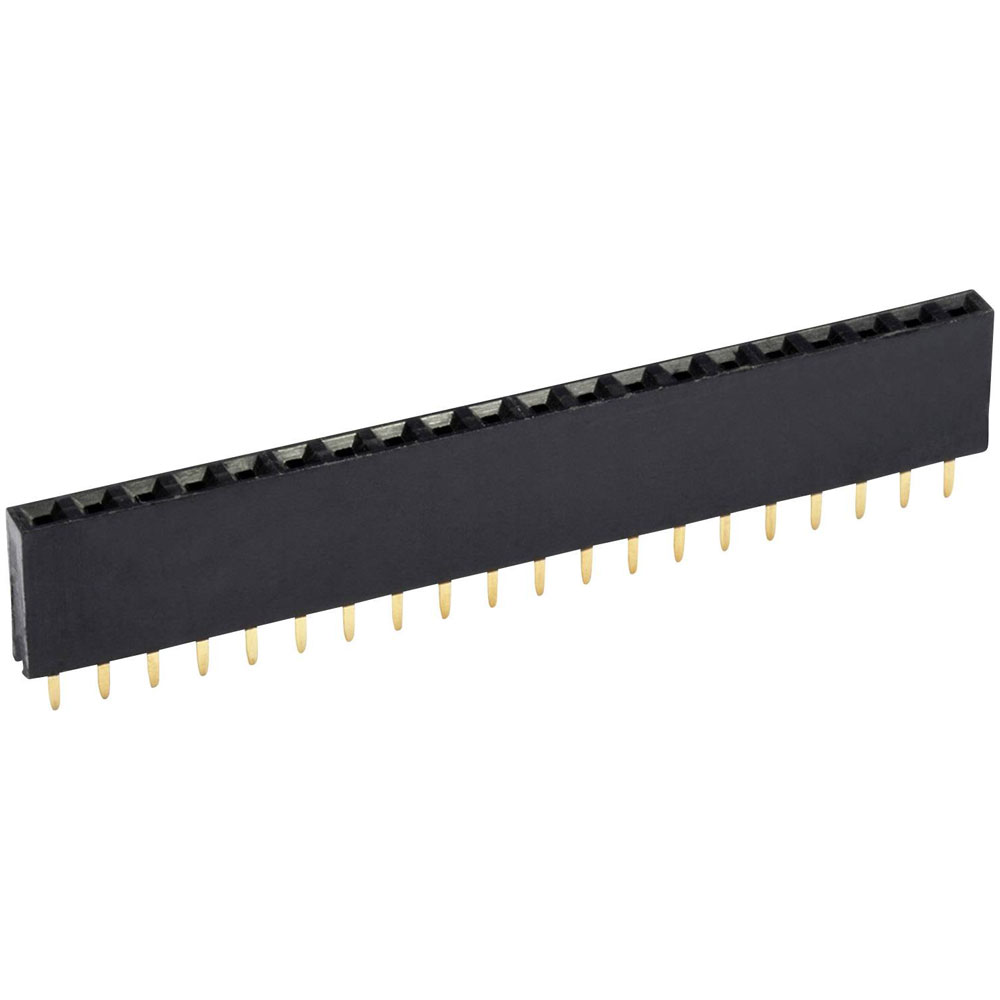

Image Representative of Range

econ connect BLG1X17 SIL Socket 1 row 17 pins 1pc standard

econ connect
Order Code:

02-6982

Brand: econ connect MPN: BLG1X17 EAN-13: 2050004576719
Qty Unit Price (Ex VAT)
10+ £0.253
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 10
10 in stock, despatched same dayFurther 522 despatched in 4 working days

The econ connect SIL socket is a standard 17-pin single-row receptacle with the part number BLG1X17. It is typically used in electronic and electrical applications where reliable connectivity between circuits is required. This socket is valued for its simplicity and effectiveness in providing secure and efficient electrical connections.
Type Receptacles (standard)
Number of Positions 17
Number of Rows 1
Orientation Perpendicular (to the PCB)
Case Material PBT, UL94V-0
Colour Black
Connection Print
Contact Material Copper alloy
Contact surface Gold plated
CS 2.54mm
Dim (L x W x H) 43.68 x 43.68 x 8.5 mm
Height 8.5mm
Industrial packaging No
Length 43.68mm
Max. temperature 105°C
Min. temperature -40°C
Nominal Current 3A
Nominal current - rounded value 3A
Nominal Voltage 1000V AC
Pin length (PCB) 3.15mm
Pin Ø 0.64mm
Pin shape Rectangular
Pins per row 17
Separable No
Width 43.68mm
