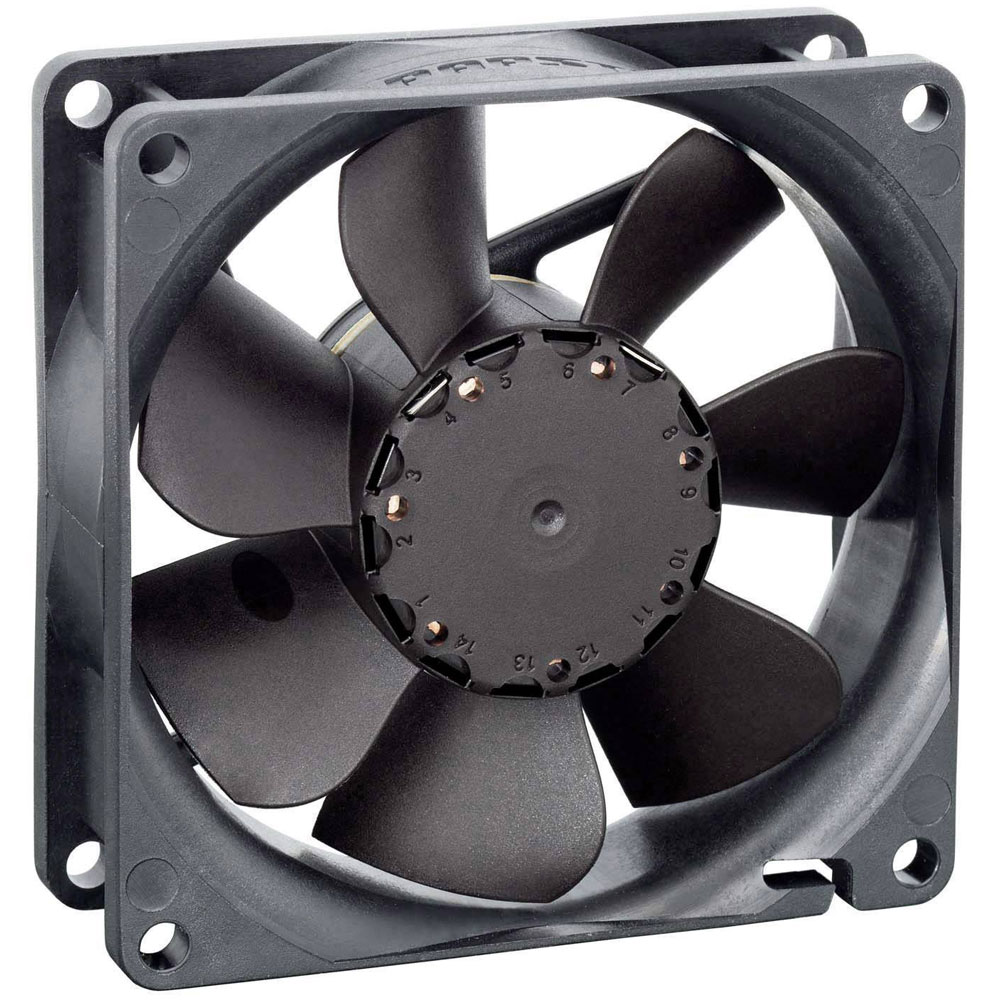

ebm-papst 9292506110 Axial Fan 24V DC 64m³/h 80x80x25.4mm

Name: ebm-papst 9292506110 Axial Fan 24V DC 64m³/h 80x80x25.4mm
Brand: ebm-papst
Price: 19.15 GBP
Availability: InStock

Standard range

Order Code:

02-6769

Brand: ebm-papst MPN: 9292506110

RoHS Compliant
Country of Origin: Hungary
Free UK shipping available
View Full Product Range (12)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£19.15

Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT

54 in stock, despatched in 4 working days

Product Details
Product Range
Data Sheets
Quick Quote

The EBM Papst 8414NGH axial fan operates on 24 V DC and delivers an airflow of 64 m³/h. Its compact dimensions of 80 x 80 x 25.4 mm make it ideal for component cooling in industrial applications. This reliable fan is widely used in electronic equipment for efficient heat dissipation.

Type	Axial fan
Air flow rate	64m³/h
Dim	(L x W x H) 80 x 80 x 25.4 mm
Height	25.4mm
Length	80mm
Material	Plastic
Max. current consumption	114mA
Max. temperature	70°C
Min. temperature	-20°C
Misc Attribute	8414NGH
Noise emission (max.)	37dB
Nominal voltage	24V DC
Power	2.8W
Rotational speed	3600 U/min
Type of bearing	Plain bearing
Width	80mm
