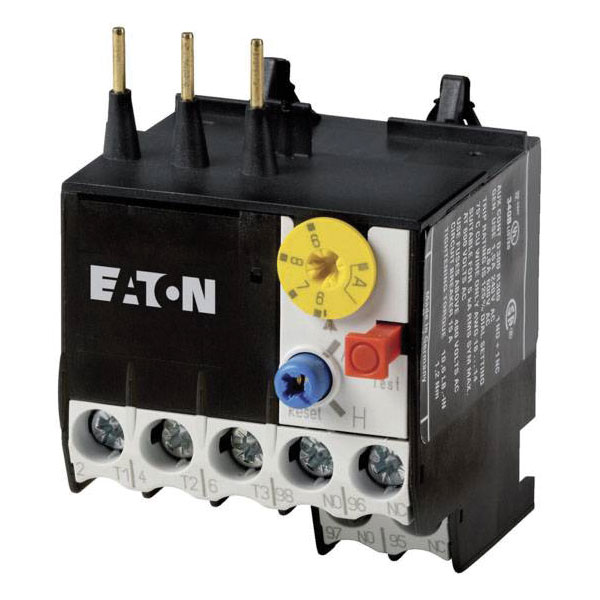

Eaton ZB65-65 Overload Relay 278460 1pc Compact and reliable protection

The Eaton ZB65-65 is an overload relay designed to protect electrical circuits by monitoring current and preventing overheating. This device is suitable for industrial applications where reliable circuit protection is crucial. It is used to enhance the safety and longevity of electrical equipment by providing overload protection.

Type	Overload relay
Rated operation power at AC-3, 230 V	N/A
Adjustable current range	50-65A
Connection	Screws
IP Rating	IP00
Max. rated operation voltage Ue	690V
Misc Attribute	ZB65-65
Mounting method	Direct attachment
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	1
Number of auxiliary contacts as normally open contact	1
Release class	CLASS 10 A
Reset function automatic	TRUE
Reset function input	FALSE
Reset function push-button	TRUE
Switching Voltage	690V
Type of electrical connection of main circuit	Screw connection
