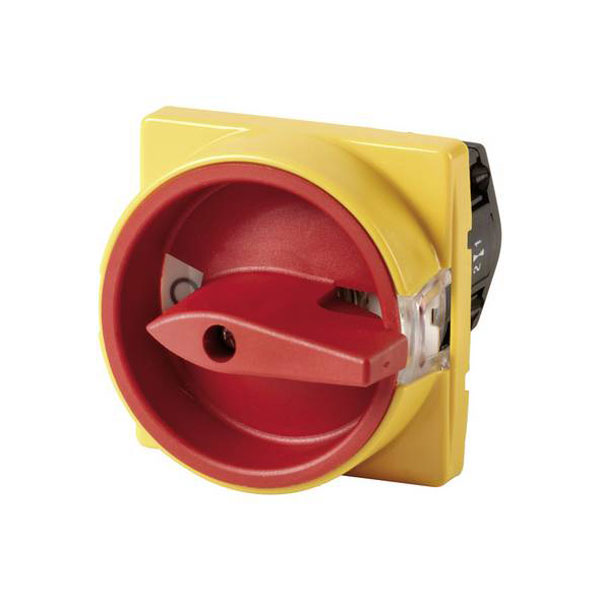

The Eaton TM-1-8291/E/SVB is a lockable limit switch with a capacity of 10 A and 690 V, featuring a 90-degree rotary cam mechanism with yellow and red markings. It is typically used in industrial settings for applications such as changing, reversing, or selecting operations in machinery control systems. The switch ensures precise and reliable control, catering to a wide range of electrical system needs.
| Type |
Limit switch |
| Colour control element |
Red |
| Conditioned rated short-circuit current Iq |
0kA |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA) |
12 |
| Depth |
77mm |
| Device construction |
Built-in device fixed built-in technique |
| Dim |
(L x W) 48 mm x 48 mm |
| Functions |
latch |
| Height |
48mm |
| Interlockable |
TRUE |
| IP Rating |
IP65 |
| Length |
48mm |
| Max. rated operation voltage Ue AC |
500V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Lockable in 0 position |
| Misc Attribute 2 |
TM-1-8291/E/SVB |
| Motor drive integrated |
FALSE |
| Motor drive optional |
FALSE |
| Mounting Type |
Recess-mount |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of Pins |
2 |
| Number of Poles |
2 |
| Number of switches |
1 |
| Operation type |
EPO rotary switch |
| Power |
3kW |
| Print motif |
0/1 |
| Rated operating voltage |
500-500V |
| Rated operation power at AC-23, 400 V |
3kW |
| Rated operation power at AC-3, 400 V |
0kW |
| Rated permanent current at AC-21, 400 V |
0A |
| Rated permanent current Iu |
10A |
| Rated short-time withstand current lcw |
0kA |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting 4-hole |
TRUE |
| Suitable for front mounting centre |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Switch/button features |
Lockable |
| Switching angle |
1 x 90 ° |
| Switching current (max.) |
10A |
| Switching power at 400 V |
0kW |
| Switching Voltage |
690V |
| Thread Size |
M2.5 |
| Type of control element |
Door coupling rotary drive |
| Type of electrical connection of main circuit |
Screw connection |
| Version as emergency stop installation |
TRUE |
| Version as main switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Version as reversing switch |
FALSE |
| Version as safety switch |
FALSE |
| Voltage release optional |
FALSE |
| With pre-assembled cabling |
FALSE |
