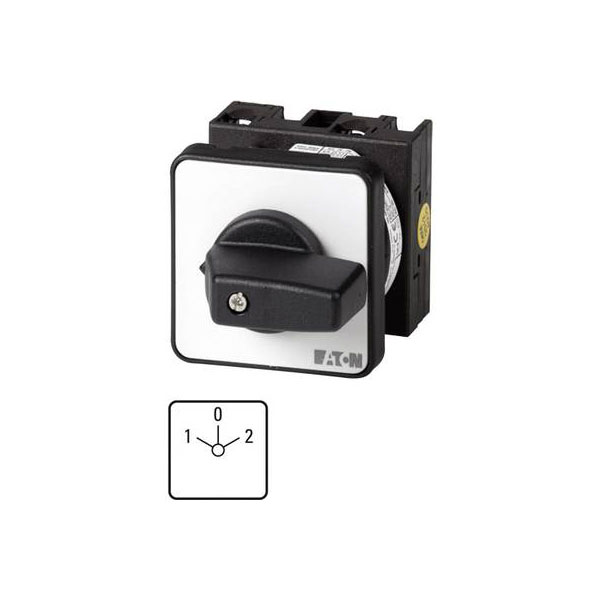

The Eaton T0-3-8401/E is a rotary cam switch that acts as a limit switch with a 20 A, 690 V rating, featuring a 2 x 30° operation in grey and black colours. Manufactured by Eaton, it is designed for versatile switching roles such as reversing, changeover, and selection applications. Ideal for controlling industrial equipment, this switch is suited for precise and reliable operation in various electrical setups.
| Type |
Limit switch |
| Complete device in housing |
FALSE |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Dim |
(L x W) 48 mm x 48 mm |
| Functions |
latch |
| Housing Material |
Plastic |
| IP rating |
IP65 |
| Length |
48mm |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Reversing switch |
| Misc Attribute 2 |
T0-3-8401/E |
| Model |
Reversing switch |
| Mounting Type |
Recess-mount |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of pins |
3 |
| Number of Poles |
3 |
| Operation type |
Toggle |
| Power |
6.5kW |
| Print motif |
1/0/2 |
| Rated operation current Ie at AC-3, 400 V |
11.5A |
| Rated operation power at AC-3, 400 V |
4kW |
| Rated permanent current Iu |
20A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
2 x 30 ° |
| Switching current (max.) |
20A |
| Switching voltage |
690V |
| Thread Size |
M3.5 |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Width |
48mm |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
