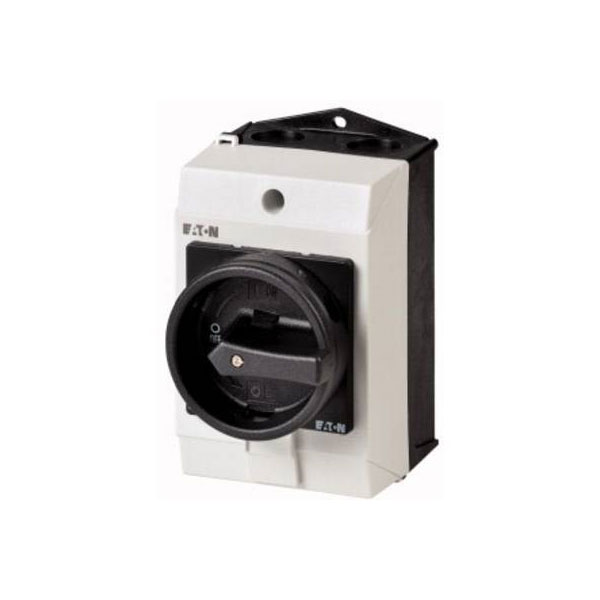

Eaton manufactures the T0-3-15683/I1/SVB-SW limit switch, which features a robust design with a 20 A rating at 690 V and a 90-degree operation angle. This black, single unit is ideal for industrial applications requiring precise control and reliability. Commonly used in machinery, it ensures safety and operational efficiency in various automated systems.
Type |
Limit switch |
Casing/button colour |
Black |
Colour control element |
Black |
Conditioned rated short-circuit current Iq |
6kA |
Connection |
Screws |
Degree of protection (IP), front side |
IP65 |
Degree of protection (NEMA) |
12 |
Device construction |
Complete device in housing |
Dim |
(W x H x D) 80 x 137 x 95 mm |
Functions |
latch |
Interlockable |
TRUE |
IP rating |
IP65 |
Max. rated operation voltage Ue AC |
690V |
Max. temperature |
+50°C |
Min. temperature |
-25°C |
Misc Attribute 1 |
Surface-mounted main switch |
Misc Attribute 2 |
T0-3-15683/I1/SVB-SW |
Motor drive integrated |
FALSE |
Motor drive optional |
FALSE |
Mounting Type |
Structure |
Number of auxiliary contacts as change-over contact |
0 |
Number of auxiliary contacts as normally closed contact |
1 |
Number of auxiliary contacts as normally open contact |
2 |
Number of pins |
3 |
Number of Poles |
3 |
Number of switches |
1 |
Operation type |
Rotary switch |
Power |
6.5kW |
Print motif |
OFF/ON |
Rated operating voltage |
690-690V |
Rated operation power at AC-23, 400 V |
5.5kW |
Rated operation power at AC-3, 400 V |
5.5kW |
Rated permanent current at AC-21, 400 V |
20A |
Rated permanent current at AC-23, 400 V |
13.3 |
Rated permanent current Iu |
20A |
Rated short-time withstand current lcw |
0.32kA |
Suitable for distribution board installation |
FALSE |
Suitable for floor mounting |
TRUE |
Suitable for front mounting 4-hole |
FALSE |
Suitable for front mounting centre |
FALSE |
Suitable for intermediate mounting |
FALSE |
Switching angle |
1 x 90 ° |
Switching current (max.) |
20A |
Switching power at 400 V |
5.5kW |
Switching voltage |
690V |
Temperature range |
-25 - +50°C |
Thread Size |
M3.5 |
Type of control element |
Door coupling rotary drive |
Type of electrical connection of main circuit |
Screw connection |
Version as emergency stop installation |
FALSE |
Version as main switch |
TRUE |
Version as maintenance-/service switch |
TRUE |
Version as reversing switch |
FALSE |
Version as safety switch |
FALSE |
Voltage release optional |
FALSE |
With pre-assembled cabling |
FALSE |
