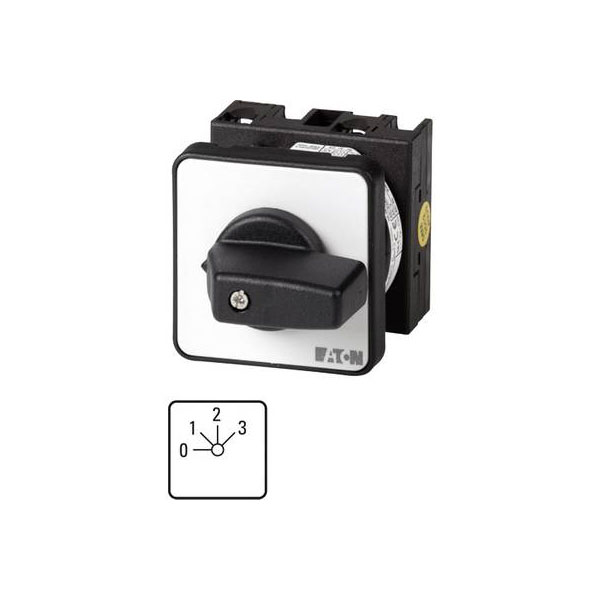

The Eaton T0-2-8241/E is a limit switch with a capacity of 20 A and an adjustment range of 3 x 40°. It features a grey and black colour scheme and can be used as a rotary cam switch, reversing switch, changeover switch, or selection switch. This switch is typically utilised in electrical circuits for controlling the movement or position of machinery and equipment.
| Type |
Limit switch |
| Complete device in housing |
FALSE |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Device construction |
Built-in device |
| Dim |
(L x W) 48 mm x 48 mm |
| Front shield size |
48x48 mm |
| Functions |
latch |
| IP rating |
IP65 |
| Length |
48mm |
| Max. rated operation voltage Ue AC |
690V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute |
T0-2-8241/E |
| Mounting Type |
Recess-mount |
| Number of pins |
1 |
| Number of Poles |
1 |
| Number of switch positions |
4 |
| Operation type |
Toggle |
| Power |
6.5kW |
| Print motif |
0/1/2/3 |
| Rated permanent current Iu |
20A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
3 x 40 ° |
| Switching current (max.) |
20A |
| Type of control element |
Toggle |
| Type of switch |
Level switch |
| Width |
48mm |
| Width in number of modular spacings |
0 |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
