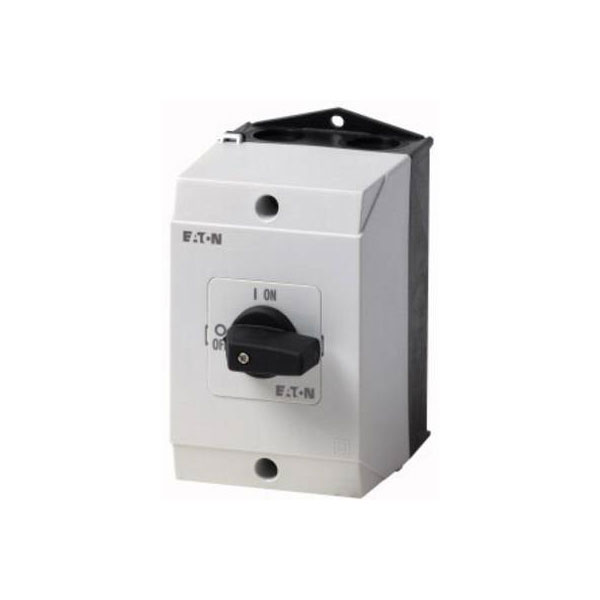

The Eaton T0-2-1/I1 limit switch, with a current rating of 20 A, features a 1 x 90° actuation angle and is coloured grey and black. Manufactured by Eaton, this durable switch is typically used in industrial applications to detect the presence or absence of an object and monitor mechanical movements. Its robust design ensures reliable performance in heavy-duty environments.
| Type |
Limit switch |
| Colour control element |
Black |
| Conditioned rated short-circuit current Iq |
6kA |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA) |
12 |
| Device construction |
Complete device in housing |
| Dim |
(W x H x D) 80 x 137 x 75 mm |
| Functions |
latch |
| Interlockable |
FALSE |
| IP rating |
IP65 |
| Max. rated operation voltage Ue AC |
690V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Surface-mounted on/off switch |
| Misc Attribute 2 |
T0-2-1/I1 |
| Motor drive integrated |
FALSE |
| Motor drive optional |
FALSE |
| Mounting Type |
Structure |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of pins |
3 |
| Number of Poles |
3 |
| Number of switches |
1 |
| Operation type |
Toggle |
| Pins |
3 |
| Power |
6.5kW |
| Print motif |
OFF/ON |
| Rated operating voltage |
690-690V |
| Rated operation power at AC-23, 400 V |
5.5kW |
| Rated operation power at AC-3, 400 V |
5.5kW |
| Rated permanent current at AC-21, 400 V |
20A |
| Rated permanent current at AC-23, 400 V |
13.3 |
| Rated permanent current Iu |
20A |
| Rated short-time withstand current lcw |
0.32kA |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
1 x 90 ° |
| Switching capacity |
6,5kW |
| Switching Current |
20A |
| Switching current (max.) |
20A |
| Switching power at 400 V |
5.5kW |
| Temperature range |
-25 - +50°C |
| Thread Size |
M20 |
| Type of control element |
Short thumb-grip |
| Type of electrical connection of main circuit |
Screw connection |
| Version as emergency stop installation |
FALSE |
| Version as main switch |
FALSE |
| Version as maintenance-/service switch |
FALSE |
| Version as reversing switch |
FALSE |
| Version as safety switch |
FALSE |
| Voltage release optional |
FALSE |
| With pre-assembled cabling |
FALSE |
