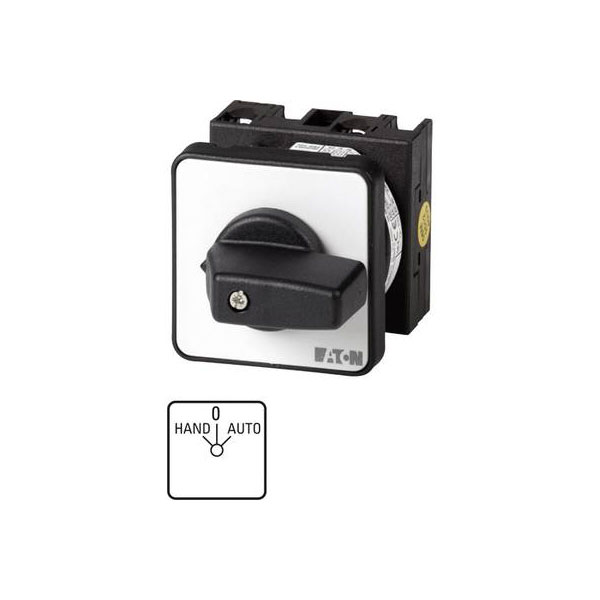

Eaton's T0-1-15431/E is a limit switch rated for 20 A and 690 V, designed with a rotary cam mechanism. The switch features a colour scheme of grey and black and operates within a range of 2 x 60 degrees. Typical applications include use as a reversing switch, changeover switch, and selection switch in electrical circuits.
| Type |
Limit switch |
| Complete device in housing |
FALSE |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA), front side |
12 |
| Device construction |
Built-in device |
| Dim |
(L x W) 48 mm x 48 mm |
| Front shield size |
48x48 mm |
| Functions |
latch |
| IP rating |
IP65 |
| Length |
48mm |
| Max. rated operation voltage Ue AC |
690V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Control Switch Installation |
| Misc Attribute 2 |
T0-1-15431/E |
| Mounting Type |
Recess-mount |
| Number of pins |
1 |
| Number of Poles |
1 |
| Number of switch positions |
3 |
| Operation type |
Toggle |
| Power |
6.5kW |
| Print motif |
Manual/0/Auto |
| Rated permanent current Iu |
20A |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
2 x 60 ° |
| Switching current (max.) |
20A |
| Switching voltage |
690V |
| Thread Size |
M3.5 |
| Type of control element |
Toggle |
| Type of switch |
Reverser |
| Width |
48mm |
| Width in number of modular spacings |
0 |
| With retraction in 0-position |
FALSE |
| With zero (off) position |
TRUE |
