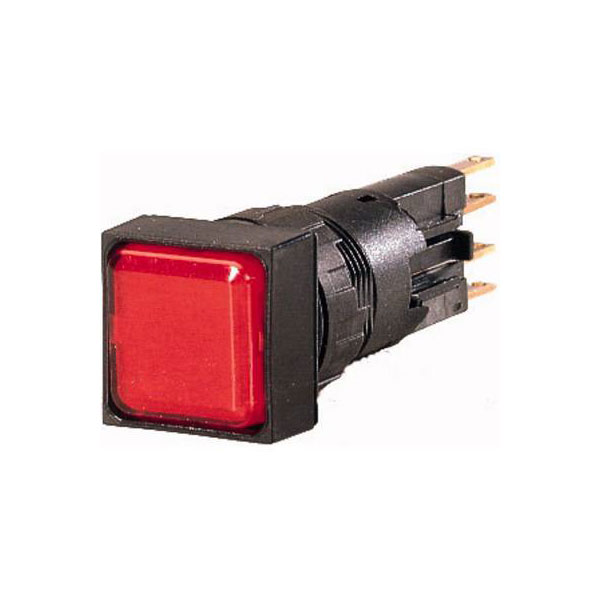

Eaton Q25LF-RT Indicator Light Red 24V AC Single Unit

The Eaton Q25LF-RT indicator light is a red-coloured alarm device designed for a 24 V AC power supply. Manufactured by Eaton, this component is typically used in signalling applications to indicate operational status or alert operators to potential issues. It is commonly utilised in control panels and industrial machinery.

Type	Indicator light
Lamp/Lens Colour	Red
Voltage	24V AC
Connection	Type C CEE 7/16 plug 2.8mm
Dimensions	(L x W) 25 mm x 25 mm
Front panel max.	25mm
IP Rating	IP65
Length	25mm
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	Without bulb with socket W2x4.6d; max. 30 V, 1 W
Misc Attribute 2	Q25LF-RT
Recess Diameter	16mm
Width	25mm
