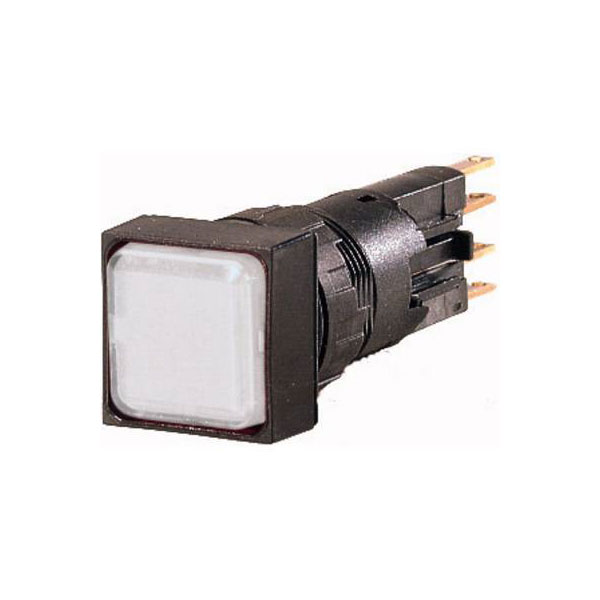

Eaton Q18LF-WS Indicator Light White 24V AC 1 piece

The Eaton Q18LF-WS is a white indicator light designed for 24 V AC systems, manufactured by Eaton. It is commonly used as an alarm device or for signalling purposes in various industrial applications. This single-piece component is part of Eaton's Moeller range, featuring model number 088406.

Type	Indicator light
Lamp/Lens Colour	White
Voltage	24V AC
Connection	Type C CEE 7/16 plug 2.8mm
Dimensions	(L x W) 18 mm x 18 mm
Front panel max.	18mm
IP Rating	IP65
Length	18mm
Maximum Temperature	+60°C
Min. temperature	-25°C
Misc Attribute 1	Without bulb with socket W2x4.6d; max. 30 V, 1 W
Misc Attribute 2	Q18LF-WS
Recess Diameter	16mm
Width	18mm
