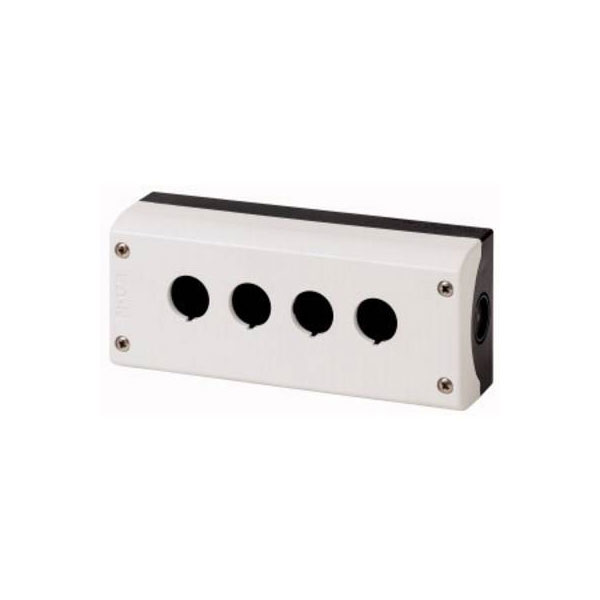

Eaton M22-I4 Housing 4 slots floor mounting 22x80mm anthracite

The Eaton M22-I4 housing features four installation slots for floor mounting with dimensions of 22 mm by 80 mm. This anthracite component is ideal for use with switches and buttons in control and indication devices. Typical applications include industrial environments where durable and reliable mounting solutions are required.

IP Rating	IP67/IP69K
Type	Housing
(Ø)	22mm
Colour housing cover	Grey
Construction type housing	Surface mounting housing
Degree of protection (NEMA)	3R
Depth	80mm
Diameter openings	22.5mm
Dim	(Ø x H) 22 mm x 80 mm
Factory colour	Anthracite
Housing Material	Plastic
Housing material quality	Other
Length	56mm
Material	Plastic
Maximum Temperature	+70°C
Min. temperature	-25°C
Misc Attribute 1	4 Installation points
Misc Attribute 2	M22-I4
Mounting Type	Floor
Number of command positions	4
Recess Diameter	22mm
Width	186mm
