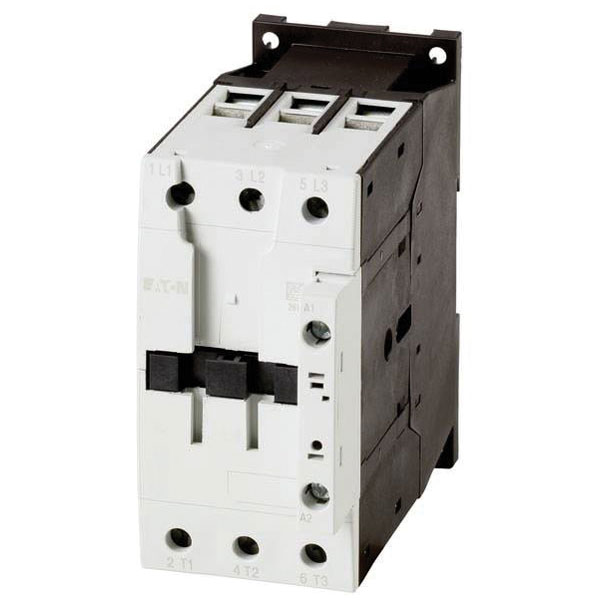

Eaton 277926 DILM65-22 electrical contactor 3-pole 30 kW 230/240V

The Eaton DILM65-22 electrical contactor is designed for managing 30 kW power loads at 230V/50Hz or 240V/60Hz. This robust component is ideal for use in motor control and automation systems. Typical applications include controlling electric motors and switching electrical circuits.

Type	Electrical contactor
Connection	Screws
Contact type	3 makers
Control voltage (max.)	240V AC
Control voltage (min.)	230V AC
Control voltage range	230 - 240 V AC
Depth	147mm
Height	115mm
Misc Attribute	DILM65-22(230V50HZ,240V60HZ)
No. of pins	3-pin
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	230-690V
Operating voltage AC 60 Hz	230-690V
Power	30kW
Rated control supply voltage AC 50 Hz	230-230V
Rated control supply voltage AC 60 Hz	240-240V
Rated control supply voltage DC	0-0V
Rated operation current Ie at AC-1, 400 V	98A
Rated operation current Ie at AC-3, 400 V	65A
Rated operation current Ie at AC-4, 400 V	25A
Rated operation power at AC-3, 400 V	30kW
Rated operation power at AC-4, 400 V	12kW
Rated operation power NEMA	37kW
RoHS-compliant	Yes
Suitable for distribution board	FALSE
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	55mm
