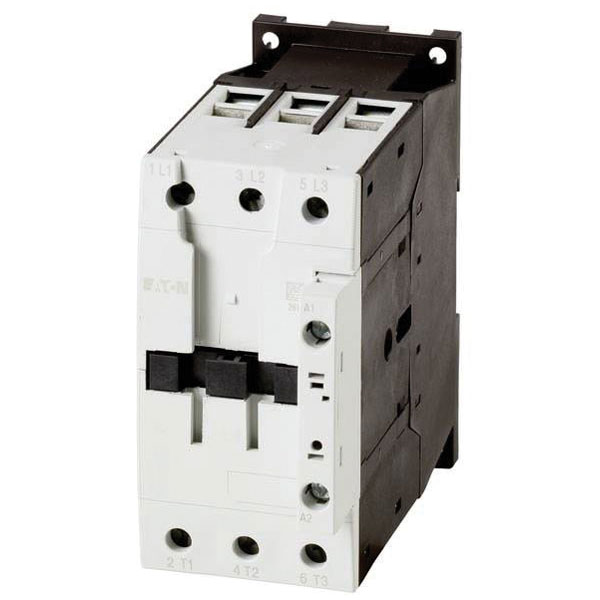

Eaton 277798 DILM40-22 Contactor 230V/240V 3 Makers 18.5 kW 1pc

The Eaton DILM40-22 electrical contactor is rated for 18.5 kW and operates at 230V 50Hz or 240V 60Hz. It is a robust device suitable for controlling electric motors and other high-power loads. Typical applications include industrial machinery and automation systems.

Type	Electrical contactor
Connection	Screws
Contact type	3 makers
Control voltage (max.)	240V AC
Control voltage (min.)	230V AC
Control voltage range	230 - 240 V AC
Depth	147mm
Height	115mm
Misc Attribute	DILM40-22(230V50HZ,240V60HZ)
No. of pins	3-pin
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	230-690V
Operating voltage AC 60 Hz	230-690V
Power	18.5kW
Rated control supply voltage AC 50 Hz	230-230V
Rated control supply voltage AC 60 Hz	240-240V
Rated control supply voltage DC	0-0V
Rated operation current Ie at AC-1, 400 V	60A
Rated operation current Ie at AC-3, 400 V	40A
Rated operation current Ie at AC-4, 400 V	18A
Rated operation power at AC-3, 400 V	18.5kW
Rated operation power at AC-4, 400 V	9kW
Rated operation power NEMA	22kW
RoHS-compliant	Yes
Suitable for distribution board	FALSE
Type of electrical connection of main circuit	Screw connection
Voltage type for actuating	AC
Width	55mm
