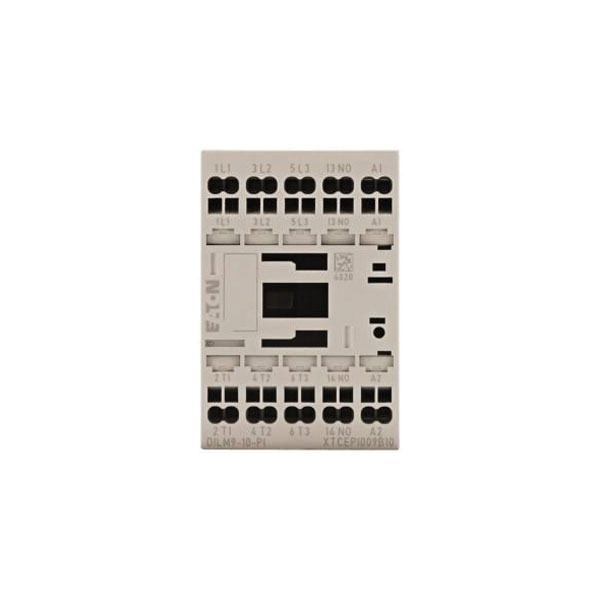

The Eaton DILM9-10 electrical contactor, with product number 276677, is designed for controlling electric motors up to 4 kW at 24V and 50Hz. Featuring robust construction, it ensures reliable performance in industrial settings. This contactor is typically used in applications such as automation systems and motor control circuits.
| Type |
Electrical contactor |
| Auxiliary contact type |
1 maker |
| Connection |
Screws |
| Contact Type |
3 makers |
| Control voltage (max.) |
24V AC |
| Control voltage range |
24 V AC (max) |
| Depth |
75mm |
| Height |
68mm |
| Misc Attribute |
DILM9-10(24V50HZ) |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of normally closed contacts as main contact |
0 |
| Number of normally open contacts as main contact |
3 |
| Number of Pins |
3-pin |
| Operating voltage AC 50 Hz |
24-690V |
| Operating voltage AC 60 Hz |
24-690V |
| Power |
4kW |
| Rated control supply voltage AC 50 Hz |
24-24V |
| Rated control supply voltage AC 60 Hz |
0-0V |
| Rated control supply voltage DC |
0-0V |
| Rated operation current Ie at AC-1, 400 V |
22A |
| Rated operation current Ie at AC-3, 400 V |
9A |
| Rated operation current Ie at AC-4, 400 V |
6A |
| Rated operation power at AC-3, 400 V |
4kW |
| Rated operation power at AC-4, 400 V |
2.5kW |
| Rated operation power NEMA |
3.7kW |
| Suitable for distribution board |
FALSE |
| Type of electrical connection of main circuit |
Screw connection |
| Voltage type for actuating |
AC |
| Width |
45mm |
