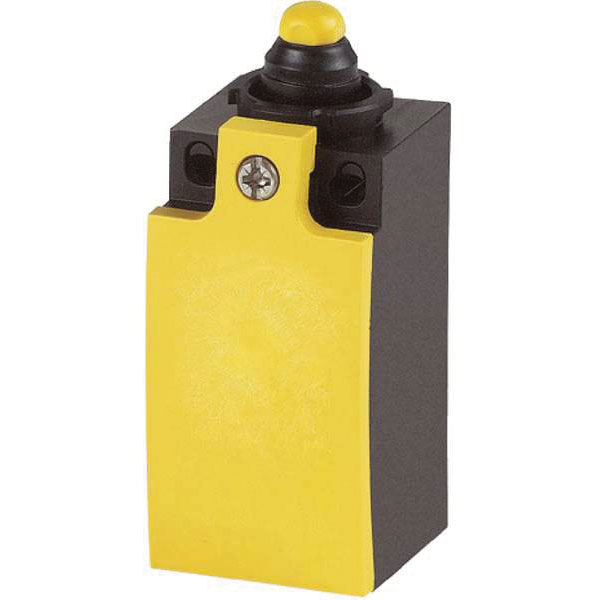

Eaton's 266140 LSM-11S is a door-operated switch with IP67 protection. This 6-amp switch features a tappet mechanism, ideal for maintaining door security and position monitoring applications. It is commonly used in industrial settings for reliable emergency power-off functions.
| Type |
Door-operated switch |
| Alignment of the control element |
Roller cam straight |
| Ambient temperature during operating |
-25-70°C |
| Coating housing |
Other |
| Connection |
Spring-loaded heavy duty connector |
| Construction type housing |
Cuboid |
| Degree of protection (NEMA) |
Other |
| Diameter sensor |
0mm |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Forced opening |
TRUE |
| Height |
61mm |
| Height of sensor |
61mm |
| Housing Material |
Metal |
| IP Rating |
IP66/IP67 |
| Length |
33.5mm |
| Length of sensor |
33.5mm |
| Material |
Metal |
| Maximum Temperature |
+70°C |
| Min. temperature |
-25°C |
| Misc Attribute |
LSM-11S |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of safety auxiliary contacts |
0 |
| Operation type |
Tappet |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 125 V |
6A |
| Rated operation current Ie at AC-15, 230 V |
6A |
| Rated operation current Ie at AC-15, 24 V |
6A |
| Rated operation current Ie at DC-13, 125 V |
0.8A |
| Rated operation current Ie at DC-13, 230 V |
0.3A |
| Rated operation current Ie at DC-13, 24 V |
3A |
| Size/ Dimensions |
(L x W x H) 33.5 x 31 x 61 mm |
| Suitable for safety functions |
TRUE |
| Switching current (max.) |
6A |
| Switching function |
Quick-break switch |
| Switching function latching |
FALSE |
| Type of control element |
Plunger |
| Type of electric connection |
Cable entry metrical |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Width |
31mm |
| Width sensor |
31mm |
| With status indication |
FALSE |
