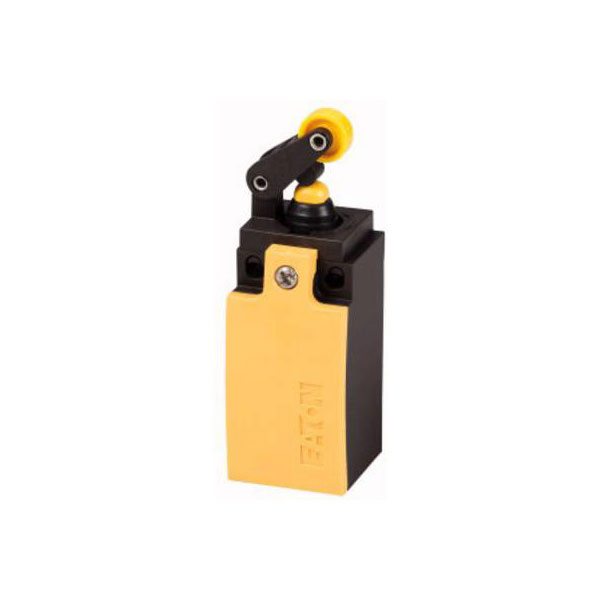

Eaton 266115 LS-11D/L limit switch 400V 6A lever IP66/IP67 1pc

Image Representative of Range

Eaton 266115 LS-11D/L limit switch 400V 6A lever IP66/IP67 1pc

Eaton
Order Code:

02-6440

Brand: Eaton MPN: 266115 EAN-13: 4015082661151
Qty Unit Price (Ex VAT)
1+ £30.64
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

The Eaton 266115 LS-11D/L is a robust limit switch designed for use in demanding environments, offering protection with IP66/IP67 ratings. It features a lever actuator, suitable for operation at 400 V and a current capacity of 6 A. Typically employed in industrial settings, this switch ensures precise position detection and control.
Type Limit switch
Alignment of the control element Other
Ambient temperature during operating -25-70°C
Coating housing Other
Connection Spring-loaded heavy duty connector
Construction type housing Cuboid
Degree of protection (IP) IP66/IP67
Degree of protection (NEMA) Other
Depth 33.5mm
Diameter sensor 0mm
Dim (L x W x H) 33.5 x 31 x 61 mm
Durability >8 x 10 6 cycles
Explosion safety category for dust None
Explosion safety category for gas None
Forced opening TRUE
Height 61mm
Height of sensor 61mm
Housing Material Plastic
Length 33.5mm
Length of sensor 33.5mm
Material Plastic
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute LS-11D/L
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of safety auxiliary contacts 0
Operation type Lever
Output electronic FALSE
Rated operation current Ie at AC-15, 125 V 6A
Rated operation current Ie at AC-15, 230 V 6A
Rated operation current Ie at AC-15, 24 V 6A
Rated operation current Ie at DC-13, 125 V 0.8A
Rated operation current Ie at DC-13, 230 V 0.3A
Rated operation current Ie at DC-13, 24 V 3A
Suitable for safety functions TRUE
Switching current (max.) 6A
Switching function Slow-action switch
Switching function latching FALSE
Switching Voltage 400V
Type of control element Roller lever
Type of electric connection Cable entry metrical
Type of interface None
Type of interface for safety communication None
Width 31mm
Width sensor 31mm
With status indication FALSE
