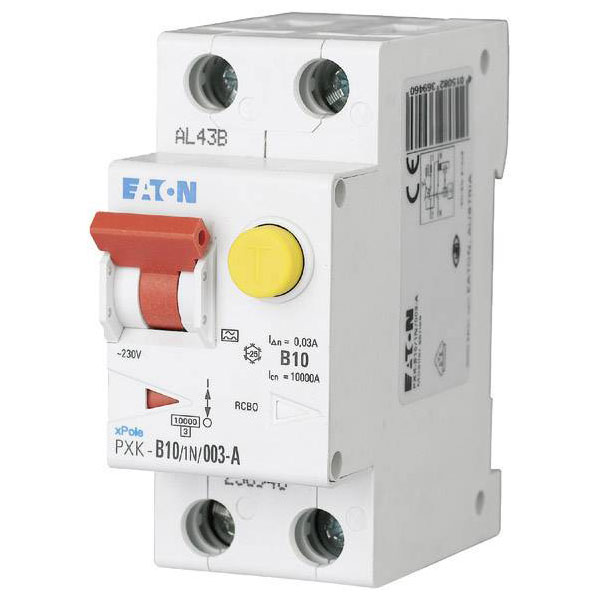

Eaton manufactures the RCBO, model number 236962, designed for electrical safety applications. This device features a 10 A current rating, a 0.03 A residual current, and operates at 240 V AC. It is typically used in residential and commercial installations to provide circuit protection and prevent electrical faults.
| Type |
RCBO |
| Ambient temperature during operating |
-25-40°C |
| Anti-nuisance tripping version |
FALSE |
| Built-in depth |
69.5mm |
| Concurrently switching neutral conductor |
TRUE |
| Connectable conductor cross section multi-wired |
1-25mm² |
| Connectable conductor cross section solid-core |
1-25mm² |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Depth |
69.5mm |
| Differential current rating |
0.03A |
| Disconnection characteristic |
Undelayed |
| Flush-mounted installation |
FALSE |
| Frequency |
50 Hz |
| Leakage current type |
A |
| Misc Attribute |
1-pole + N |
| Nominal Current |
10A |
| Nominal current - rounded value |
10A |
| Nominal Voltage |
240V AC |
| Number of Pins |
2 |
| Number of poles (total) |
2 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Rated Current |
10A |
| Rated fault current |
0.03A |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
440V |
| Rated short-circuit breaking capacity according to EN 61009 |
10kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
0kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
10kA |
| Rated Voltage |
240V |
| Release characteristic |
C |
| Release characteristics |
C |
| Surge current capacity |
0.25kA |
| Switch-off capacity |
10kA |
| Voltage type |
AC |
| Width in number of modular spacings |
2 |
| With interlocking device |
FALSE |
