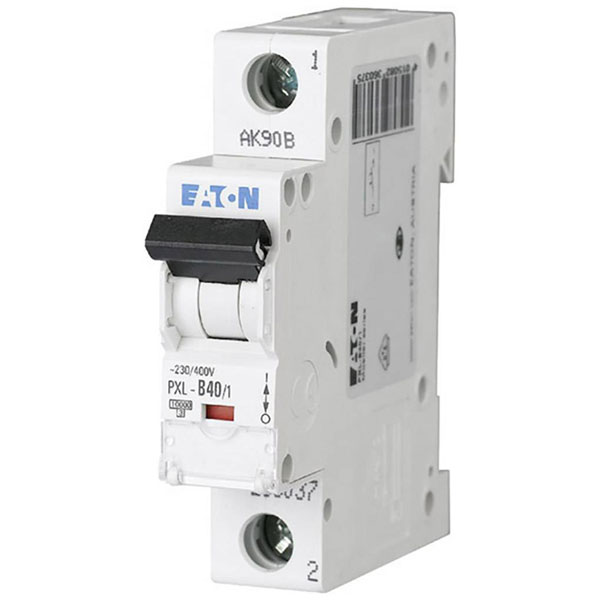

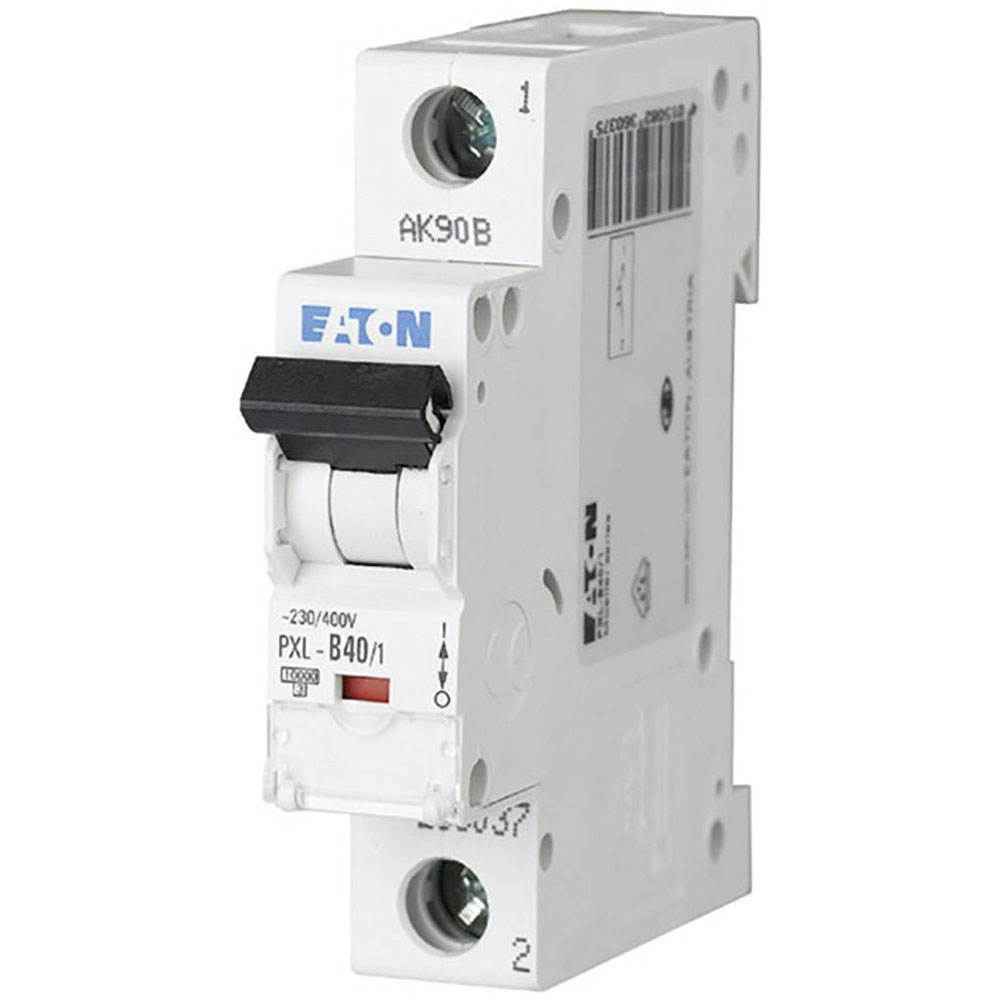

Eaton 236063 PXL Circuit breaker 40 A 1-pin 230 V AC LS-switch

The Eaton 236063 PXL-C40/1 is a circuit breaker designed for efficient electrical safety management, supporting a current rating of 40 A and operating at 230 V AC. It is ideal for safeguarding electrical circuits from overloads or short circuits in residential and commercial settings. This single-pole breaker ensures reliable protection for sensitive installations.

Type	Circuit breaker
Additional equipment possible	TRUE
Ambient temperature during operating	-25-55°C
Built-in depth	70.5mm
Concurrently switching neutral conductor	FALSE
Connectable conductor cross section multi-wired	1-25mm²
Connectable conductor cross section solid-core	1-25mm²
Current limiting class	3
Degree of protection (IP)	IP20
Depth	70.5mm
Explosion-proof	FALSE
Flush-mounted installation	FALSE
Frequency	50-60Hz
Misc Attribute	Switchgear for domestic and commercial applications
Nominal current	40A
Nominal current - rounded value	40A
Nominal voltage	230V AC
Number of pins	1
Number of poles (total)	1
Number of protected poles	1
Overvoltage category	3
Pollution degree	2
Power loss	3.4W
Rated Current	40A
Rated impulse withstand voltage Uimp	4kV
Rated insulation voltage Ui	440V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	10kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	10kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	0kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	0kA
Rated voltage	230V
Release characteristic	C
Release characteristics	C
Switch-off capacity	10kA
Voltage type	AC
Width in number of modular spacings	1
