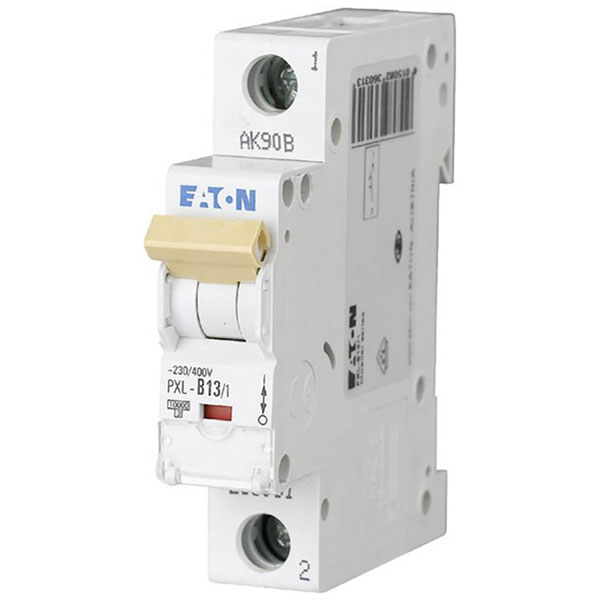

The Eaton PXL-B13/1 circuit breaker is a 1-pin device with a 13 A current rating, designed to operate at 230 V AC. Its main function is to protect electrical circuits from overcurrent, providing safety and reliability. This circuit breaker is typically used in residential and commercial electrical applications.
| Type |
Circuit breaker |
| Current Rating |
13A |
| Voltage Rating - AC |
230V AC |
| No. of Poles |
1 |
| Tripping Characteristics |
B Curve |
| Additional equipment possible |
TRUE |
| Ambient temperature during operating |
-25-55°C |
| Built-in depth |
70.5mm |
| Colour |
Multicolour |
| Concurrently switching neutral conductor |
FALSE |
| Connectable conductor cross section multi-wired |
1-25mm² |
| Connectable conductor cross section solid-core |
1-25mm² |
| Current limiting class |
3 |
| Current Ratng |
13A |
| Degree of protection (IP) |
IP20 |
| Depth |
70.5mm |
| Explosion-proof |
FALSE |
| Flush-mounted installation |
FALSE |
| Frequency |
50-60Hz |
| Misc Attribute |
Switchgear for domestic and commercial applications |
| Number of pins |
1 |
| Number of Poles |
1 |
| Number of poles (total) |
1 |
| Number of protected poles |
1 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Power loss |
2.5W |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
440V |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
10kA |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
10kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V |
0kA |
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
0kA |
| Switch-off Capacity |
10kA |
| Voltage Rating |
230V |
| Voltage type |
AC |
| Weight |
0 |
| Width in number of modular spacings |
1 |
