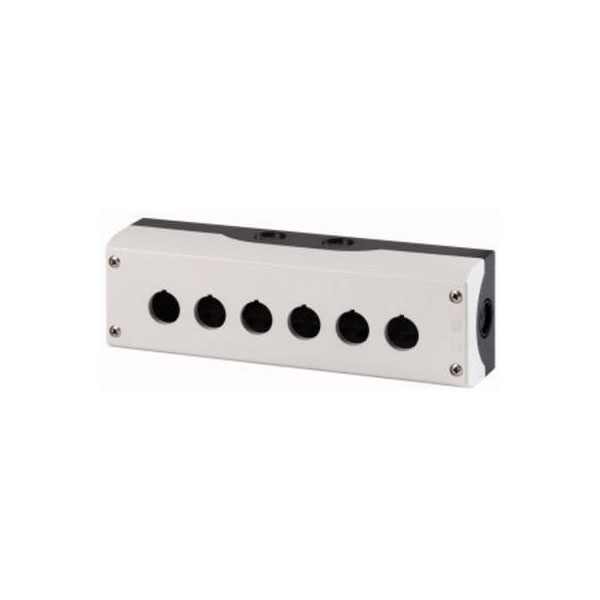

Eaton 216540 M22-I6 housing with 6 slots floor mount anthracite

Image Representative of Range

Eaton 216540 M22-I6 housing with 6 slots floor mount anthracite

Eaton
Order Code:

02-6115

Brand: Eaton MPN: 216540 EAN-13: 4015082165406
Qty Unit Price (Ex VAT)
1+ £28.30
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
30 in stock, despatched in 4 working days

The Eaton M22-I6 is an add-on housing with six installation slots designed for floor mounting, measuring 22 mm x 80 mm. It features an anthracite colour, making it suitable for industrial environments. Typical applications include use in components, switches, and buttons for instruction and indication devices.
Type Housing
(Ø) 22mm
Colour housing cover Grey
Construction type housing Surface mounting housing
Degree of protection (IP) IP66
Degree of protection (NEMA) 3R
Depth 80mm
Diameter openings 22.5mm
Dim (Ø x H) 22 mm x 80 mm
Factory colour Anthracite
Housing Material Plastic
Housing material quality Other
IP Rating IP66
Length 56mm
Material Plastic
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute 1 6 Installation points
Misc Attribute 2 M22-I6
Mounting Type Floor
Number of command positions 6
Recess diameter 22mm
Width 252mm
