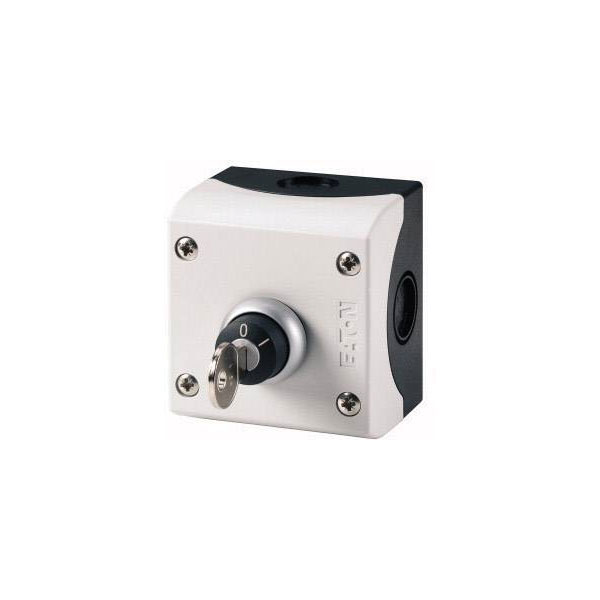

Eaton 216526 M22 Series Keyed Button Grey 1pc

The Eaton keyed button is a grey control device designed for secure operational use. It features a durable locking mechanism suited for environments requiring restricted access. Commonly utilised in industrial machinery, it ensures authorised operation in critical control settings.

Type	Keyed button
Colour housing cover	Grey
Connection	Screws
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X, 13
Factory colour	Grey
Housing colour	Grey
Housing Material	Plastic
IP rating	IP66
Material	Plastic
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute	M22-WRS/KC11/I
Number of command positions	1
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of indicator lights	0
Number of key switches	1
Number of mushroom-shaped push-buttons	0
Number of push buttons	0
Number of selector switches	1
Rated control supply voltage AC 50 Hz	115-500V
Rated control supply voltage AC 60 Hz	115-500V
Rated control supply voltage DC	24-220V
Suitable for emergency stop	FALSE
