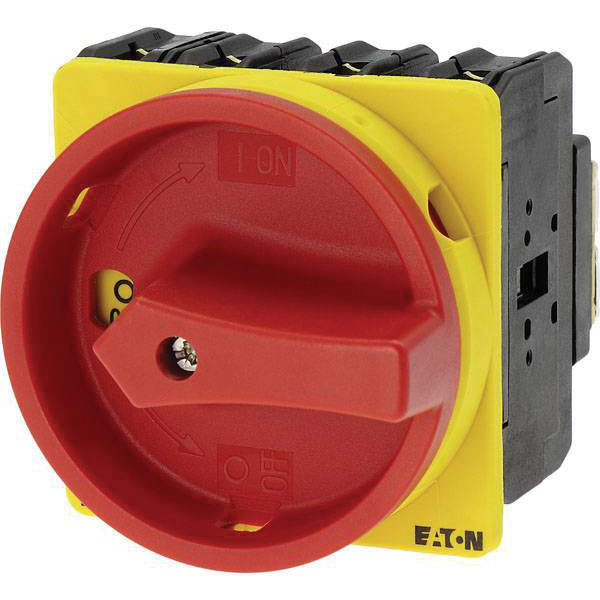

Eaton 207319 MR Switch Lockable Floor Mount 690V Red 1pc

The Eaton MR switch is a floor-mounted, lockable switch rated for 690 V, suitable for industrial and commercial electrical applications. This robust switch ensures safety and reliability, typically used for controlling and isolating electrical equipment. Its red colour enhances visibility, making it easy to identify and operate.

Type	MR switch
Casing/button colour	Red
Colour control element	Red
Conditioned rated short-circuit current Iq	80kA
Connection	Screws
Degree of protection (IP), front side	IP65
Degree of protection (NEMA)	12
Depth	115mm
Device construction	Complete device in housing
Height	180mm
Interlockable	TRUE
IP rating	IP65
Max. rated operation voltage Ue AC	690V
Misc Attribute	P1-32/I2/SVB/N
Motor drive integrated	FALSE
Motor drive optional	FALSE
Mounting Type	Structure
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	0
Number of pins	4
Number of Poles	4
Number of switches	1
Operation type	Rotary actuator
Power	15kW
Rated operating voltage	690-690V
Rated operation power at AC-23, 400 V	15kW
Rated operation power at AC-3, 400 V	13kW
Rated permanent current at AC-21, 400 V	32A
Rated permanent current at AC-23, 400 V	32
Rated permanent current Iu	32A
Rated short-time withstand current lcw	0.64kA
RoHS-compliant	Yes
Suitable for distribution board installation	FALSE
Suitable for floor mounting	TRUE
Suitable for front mounting 4-hole	FALSE
Suitable for front mounting centre	FALSE
Suitable for intermediate mounting	FALSE
Switching power at 400 V	15kW
Switching voltage	690V
Type of control element	Door coupling rotary drive
Type of electrical connection of main circuit	Screw connection
Version as emergency stop installation	TRUE
Version as main switch	TRUE
Version as maintenance-/service switch	TRUE
Version as reversing switch	FALSE
Version as safety switch	FALSE
Voltage release optional	FALSE
Width	100
With pre-assembled cabling	FALSE
