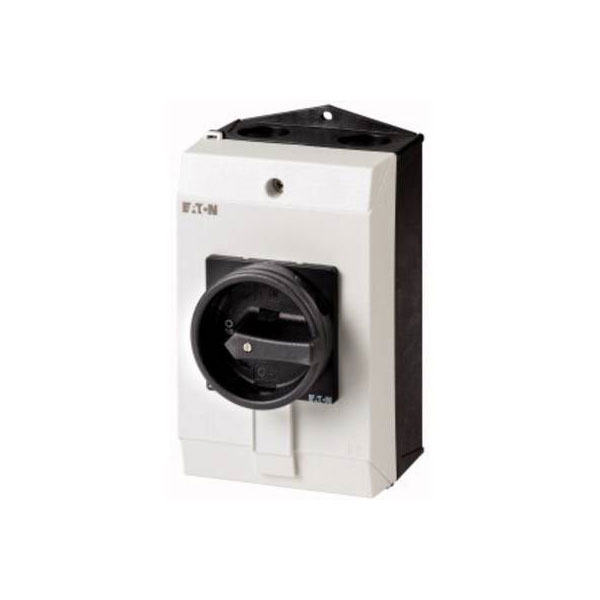

Eaton's P1-25/I2/SVB-SW is a robust limit switch designed for up to 25 A and 690 V applications, and it features a reliable 1 x 90° operation in a sleek black design. This rotary cam switch is ideal for use as a reversing, changeover, or selection switch in various industrial settings. Typically found in machinery control panels, it ensures precise and safe switching operations.
| Type |
Limit switch |
| Casing/button colour |
Black |
| Colour control element |
Black |
| Conditioned rated short-circuit current Iq |
80kA |
| Connection |
Screws |
| Degree of protection (IP), front side |
IP65 |
| Degree of protection (NEMA) |
12 |
| Device construction |
Complete device in housing |
| Dim |
(W x H x D) 100 x 180 x 80 mm |
| Functions |
latch |
| Height |
180mm |
| Interlockable |
TRUE |
| IP Rating |
IP65 |
| Max. rated operation voltage Ue AC |
690V |
| Max. temperature |
+50°C |
| Min. temperature |
-25°C |
| Misc Attribute 1 |
Surface-mounted main switch |
| Misc Attribute 2 |
P1-25/I2/SVB-SW |
| Motor drive integrated |
FALSE |
| Motor drive optional |
FALSE |
| Mounting Type |
Structure |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of Pins |
3 |
| Number of Poles |
3 |
| Number of switches |
1 |
| Operation type |
Rotary switch |
| Power |
13kW |
| Print motif |
OFF/ON |
| Rated operating voltage |
690-690V |
| Rated operation power at AC-23, 400 V |
13kW |
| Rated operation power at AC-3, 400 V |
7.5kW |
| Rated permanent current at AC-21, 400 V |
25A |
| Rated permanent current at AC-23, 400 V |
25 |
| Rated permanent current Iu |
25A |
| Rated short-time withstand current lcw |
0.64kA |
| Suitable for distribution board installation |
FALSE |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Switching angle |
1 x 90 ° |
| Switching current (max.) |
25A |
| Switching power at 400 V |
13kW |
| Switching Voltage |
690V |
| Temperature Range |
-25 - +50°C |
| Thread Size |
M4 |
| Type of control element |
Door coupling rotary drive |
| Type of electrical connection of main circuit |
Screw connection |
| Version as emergency stop installation |
FALSE |
| Version as main switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Version as reversing switch |
FALSE |
| Version as safety switch |
FALSE |
| Voltage release optional |
FALSE |
| With pre-assembled cabling |
FALSE |
