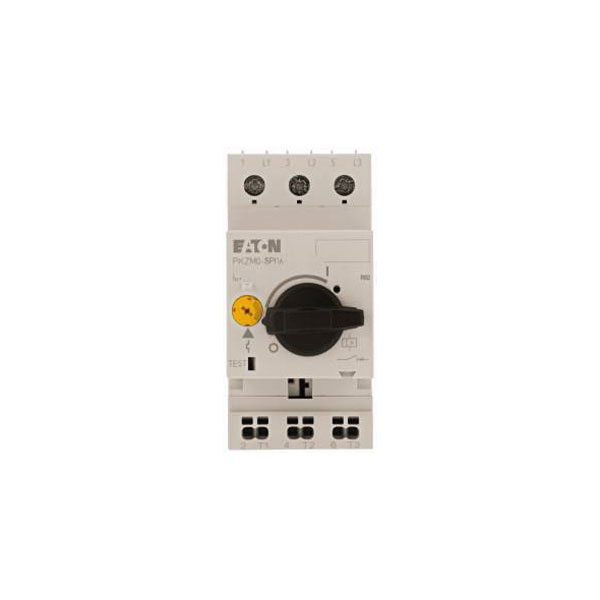

Eaton 199183 PKZM0-25-SPI16 Overload Relay 690V AC 2.5A 1pc

The Eaton 199183 PKZM0-2,5-SPI16 is an overload relay designed for use in 690 V AC systems, providing protection with a current rating of 2.5 A. It functions to safeguard motors and electrical circuits from overload conditions, thus enhancing safety and reliability. Typical applications include industrial settings where maintaining circuit integrity is crucial.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	N/A
Dim	(W x H) 45 mm x 93 mm
Durability	0.1 x 106
Height	93mm
Maximum Temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	PKZM0-2,5-SPI16
Misc Attribute 2	3-pin
Switching current (max.)	2.5A
Switching current (min.)	2.5A
Switching Voltage	690V AC
Width	45mm
