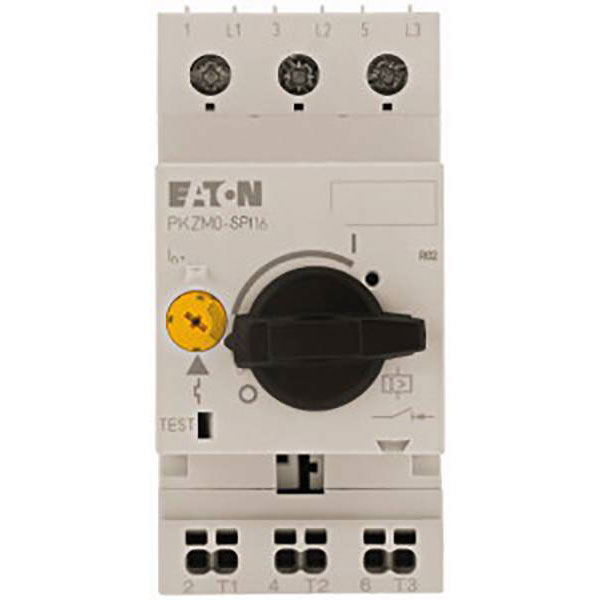

Eaton 199177 PKZM0-016-SPI16 overload relay 690V AC 0.16A 1 piece

Eaton's 199177 overload relay, model PKZM0-0,16-SPI16, is designed for use with up to 690 V AC and has a current rating of 0.16 A. The device ensures safety by providing protection against overload conditions in electrical circuits. It is typically utilised in industrial and commercial settings to safeguard motors and prevent electrical failures.

Type	Motor Ptotection Circuit-Breaker
Number of Poles	3
Rated operation power at AC-3, 230 V	N/A
Rated operation power at AC-3, 400 V	N/A
Dim	(W x H) 45 mm x 93 mm
Durability	0.1 x 106
Height	93mm
Max. temperature	+55°C
Min. temperature	-25°C
Misc Attribute 1	PKZM0-0,16-SPI16
Misc Attribute 2	3-pin
Switching current (max.)	0.16A
Switching current (min.)	0A
Switching Voltage	690V AC
Width	45mm
