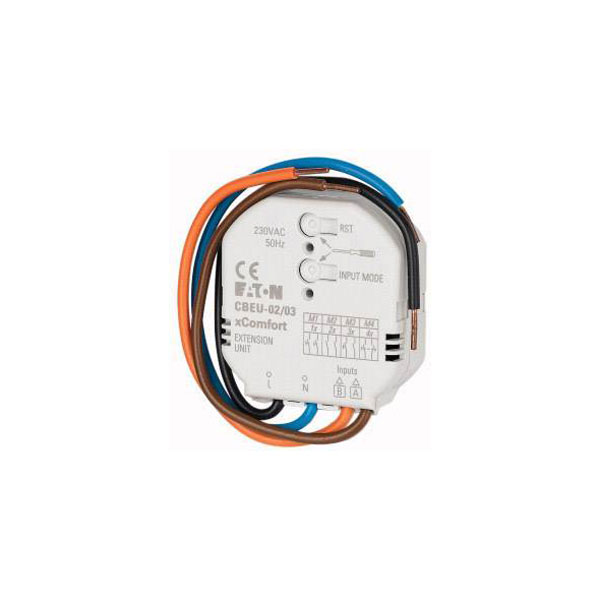

Eaton 182450 xComfort binary input for signal contacts mains powered

The Eaton binary input, model 182450, is designed for seamless integration in home automation systems. This versatile device features easy installation and reliable performance, making it suitable for controlling lighting and other electrical devices. Ideal for residential or commercial setups, it enhances the functionality of Eaton xComfort systems.

Type	Binary input
Bus module detachable	FALSE
Bus system KNX	FALSE
Bus system KNX-RF (Radio Frequency)	FALSE
Bus system LON	FALSE
Bus system Powernet	FALSE
Bus system radio frequency	TRUE
Data exchange	Bidirectional (bi)
Degree of protection (IP)	IP20
Depth	18mm
Dim	(W x H x D) 45.5 x 49.5 x 18 mm
Energy efficiency rating	n.rel.
External signal voltage necessary	TRUE
Frequency	868.3 MHz
Height	49.5mm
Hub	Not required, optional for remote access
Input Voltage	230-230V
IP rating	IP20
LED controlling	FALSE
Min. depth of built-in installation box	18mm
Mounting method	Flush mounted (plaster)
Mounting Type	Flush mount
Number of inputs	2
Other bus systems	xComfort
Power Consumption	0.23W
Power supply (LOV)	mains-powered
Radio frequency bidirectional	TRUE
Series	Eaton xComfort
Type of voltage (input voltage)	AC
Width	45.5mm
Width in number of modular spacings	3
With bus connection	TRUE
With LED indication	TRUE
