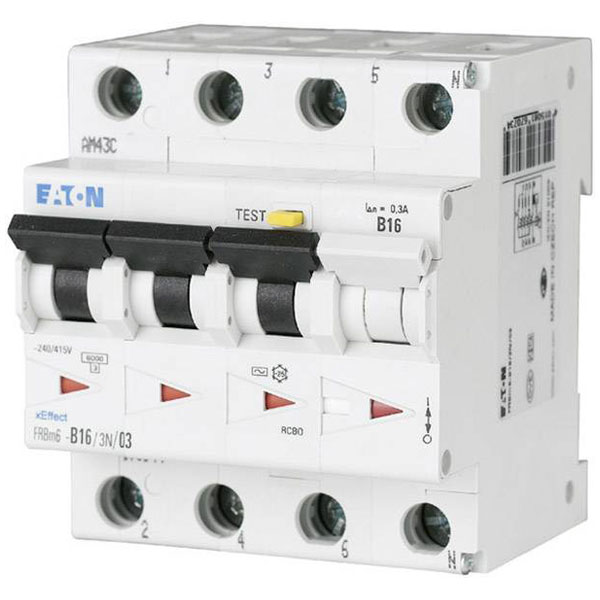

The Eaton 170988 RCBO is a residual current circuit breaker with overcurrent protection, rated at 16 A with a sensitivity of 0.03 A, designed for use with 415 V AC systems. It features a 4-pin configuration, offering enhanced safety by detecting both overcurrents and earth leakage faults. This RCBO is suitable for residential and commercial electrical systems where reliable protection against electrical faults is required.
| Type |
RCBO |
| Current Ratng |
0.03A |
| Ambient temperature during operating |
-25-40°C |
| Anti-nuisance tripping version |
FALSE |
| Built-in depth |
75.5mm |
| Concurrently switching neutral conductor |
TRUE |
| Connectable conductor cross section multi-wired |
1-25mm² |
| Connectable conductor cross section solid-core |
1-25mm² |
| Current limiting class |
3 |
| Degree of protection (IP) |
IP20 |
| Depth |
75.5mm |
| Differential current rating |
0.03A |
| Disconnection characteristic |
Undelayed |
| Flush-mounted installation |
FALSE |
| Frequency |
50 Hz |
| Leakage current type |
A |
| Misc Attribute |
3-pin + N |
| Number of Pins |
4 |
| Number of poles (total) |
4 |
| Number of protected poles |
4 |
| Overvoltage category |
3 |
| Pollution degree |
2 |
| Rated impulse withstand voltage Uimp |
4kV |
| Rated insulation voltage Ui |
500V |
| Rated short-circuit breaking capacity according to EN 61009 |
6kA |
| Rated short-circuit breaking capacity according to IEC 60947-2 |
0kA |
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
6kA |
| Release characteristic |
B |
| Release characteristics |
B |
| Surge current capacity |
0.25kA |
| Switch-off capacity |
6kA |
| Voltage Rating |
415V |
| Voltage type |
AC |
| Width in number of modular spacings |
4 |
| With interlocking device |
FALSE |
