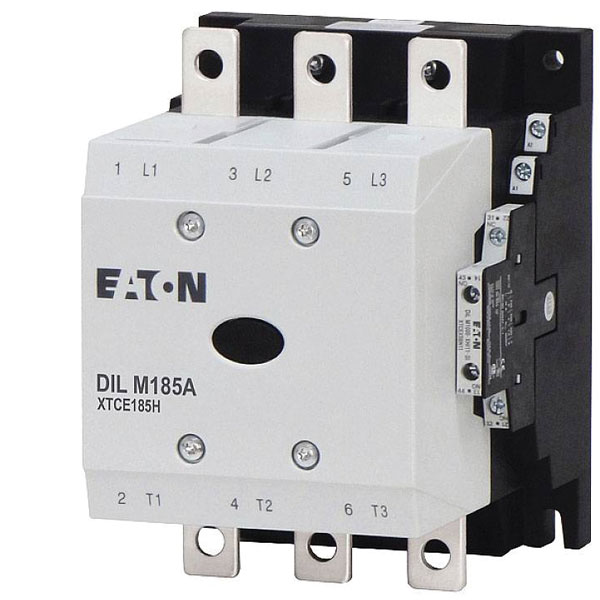

Eaton 139537 DILM185A/22RAC240 contactor 3 makers 90kW 1pc

The Eaton DILM185A/22(RAC240) is an electrical contactor designed for use in demanding industrial environments. It features three poles and is suitable for controlling motors up to 90 kW. This robust contactor is ideal for applications requiring reliable switching and protection of electric circuits.

Type	Electrical contactor
Connection	Terminal strip
Contact type	3 makers
Control voltage (max.)	240V AC
Control voltage (min.)	190V AC
Control voltage range	190 - 240 V AC
Depth	158mm
Height	190mm
Misc Attribute	DILM185A/22(RAC240)
No. of pins	3-pin
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
Operating voltage AC 50 Hz	190-240V
Operating voltage AC 60 Hz	190-240V
Power	90kW
Rated control supply voltage AC 50 Hz	190-240V
Rated control supply voltage AC 60 Hz	190-240V
Rated control supply voltage DC	0-0V
Rated operation current Ie at AC-3, 400 V	185A
Rated operation current Ie at AC-4, 400 V	136A
Rated operation power at AC-3, 400 V	90kW
Rated operation power at AC-4, 400 V	75kW
Rated operation power NEMA	93kW
RoHS-compliant	Yes
Suitable for distribution board	FALSE
Type of electrical connection of main circuit	Rail connection
Voltage type for actuating	AC
Width	140mm
