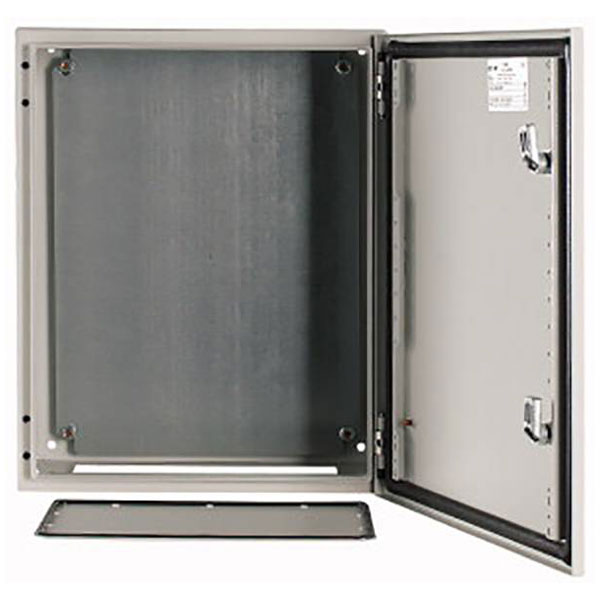

The Eaton CS-54/200 wall-mount enclosure, measuring 500 x 400 x 200 mm, is a robust grey housing for electrical equipment. Manufactured by Eaton, the enclosure is designed for secure and tidy organisation of electrical components. It is typically used for protecting and housing electrical installations in industrial and commercial settings.
| Type |
Wall-mount enclosure |
| Material |
Steel |
| Colour |
Grey |
| IK Rating |
IK10 |
| Corner model |
FALSE |
| Couplable |
FALSE |
| Degree of protection (IP) |
IP66 |
| Degree of protection (NEMA) |
12 |
| Depth |
200mm |
| Dim |
(W x H x D) 500 x 400 x 200 mm |
| Floor standing wall model |
TRUE |
| Freestanding |
FALSE |
| Intermediate mounting |
TRUE |
| Material quality |
Other |
| Max. permitted load of the door(s) according to IEC 62208 |
250N |
| Max. permitted load of the enclosure according to IEC 62208 |
2250N |
| Max. permitted load of the mounting plate according to IEC 62208 |
2000N |
| Misc Attribute |
CS-54/200 |
| Mounting plate depth-adjustable |
FALSE |
| Number of connector holes |
0 |
| Number of doors |
1 |
| Number of locks |
2 |
| Pitched roof |
FALSE |
| Pole fastening |
TRUE |
| Pre-stamping |
FALSE |
| RAL-number |
7035 |
| Suitable for metrical mounting |
TRUE |
| Suitable for outdoor set-up |
FALSE |
| Suitable for wall built-in |
TRUE |
| Suitable for wall mounting |
TRUE |
| Surface finishing |
Powder coating |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 |
35W |
| Transparent cover |
FALSE |
| With cover |
TRUE |
| With door |
TRUE |
| With glazed door |
FALSE |
| With mounting plate |
TRUE |
| With rear door |
FALSE |
| With ventilation door |
FALSE |
