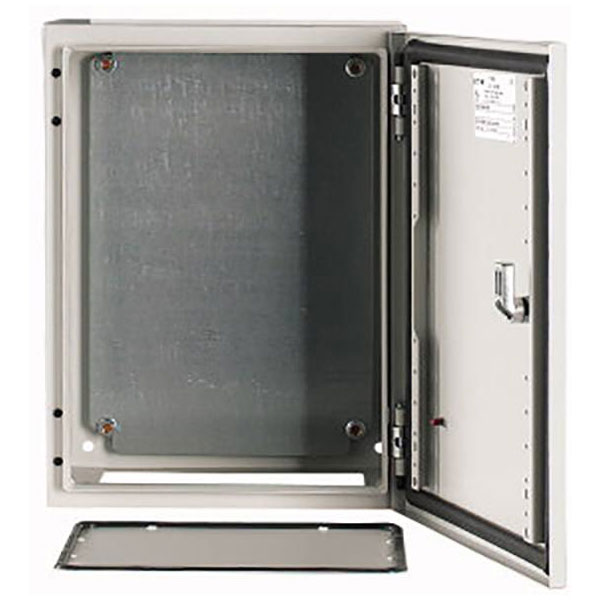

The Eaton wall-mount enclosure, model CS-43/200, is a robust grey unit measuring 400 x 300 x 200 mm. It is ideal for protecting electrical and electronic equipment in industrial and commercial settings. The enclosure offers reliable and secure housing with easy installation on walls.
| Type |
Wall-mount enclosure |
| Material |
Steel |
| Colour |
Grey |
| IK Rating |
IK10 |
| Corner model |
FALSE |
| Couplable |
FALSE |
| Degree of protection (IP) |
IP66 |
| Degree of protection (NEMA) |
12 |
| Depth |
200mm |
| Dim |
(W x H x D) 400 x 300 x 200 mm |
| Floor standing wall model |
TRUE |
| Freestanding |
FALSE |
| Intermediate mounting |
TRUE |
| Material quality |
Other |
| Max. permitted load of the door(s) according to IEC 62208 |
250N |
| Max. permitted load of the enclosure according to IEC 62208 |
1750N |
| Max. permitted load of the mounting plate according to IEC 62208 |
1500N |
| Misc Attribute |
CS-43/200 |
| Mounting plate depth-adjustable |
FALSE |
| Number of connector holes |
0 |
| Number of doors |
1 |
| Number of locks |
1 |
| Pitched roof |
FALSE |
| Pole fastening |
TRUE |
| Pre-stamping |
FALSE |
| RAL-number |
7035 |
| Suitable for metrical mounting |
TRUE |
| Suitable for outdoor set-up |
FALSE |
| Suitable for wall built-in |
TRUE |
| Suitable for wall mounting |
TRUE |
| Surface finishing |
Powder coating |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 |
24W |
| Transparent cover |
FALSE |
| With cover |
TRUE |
| With door |
TRUE |
| With glazed door |
FALSE |
| With mounting plate |
TRUE |
| With rear door |
FALSE |
| With ventilation door |
FALSE |
