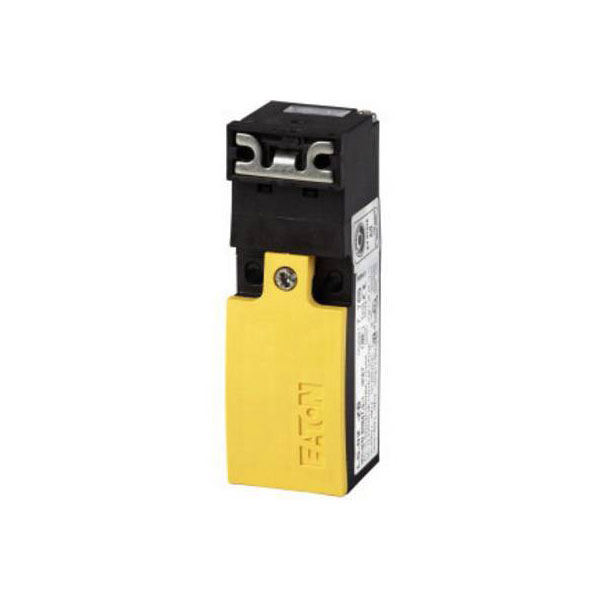

Eaton 106876 LS-S11-ZB safety button 400V 6A IP66 rating

Image Representative of Range

Eaton 106876 LS-S11-ZB safety button 400V 6A IP66 rating

Eaton
Order Code:

02-5600

Brand: Eaton MPN: 106876 EAN-13: 2050001211484
Qty Unit Price (Ex VAT)
1+ £56.91
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Eaton 106876 LS-S11-ZB is a safety button rated for 400 V and 6 A, providing robust control with an IP66 protection rating. Manufactured by Eaton, this device is ideal for emergency power-off applications in industrial settings. Its durable design ensures reliable performance in harsh environments.
Type Safety button
IP Rating IP66
Alignment of the control element Other
Ambient temperature during operating -25-70°C
Coating housing Other
Connection Spring-loaded heavy duty connector
Construction type housing Cuboid
Degree of protection (IP) IP66
Degree of protection (NEMA) Other
Diameter sensor 0mm
Dim (L x W x H) 33.35 x 30 x 96 mm (Casing)
Dim. (add. text) Casing
Durability >1.5 x 10 6 cycles
Explosion safety category for dust None
Explosion safety category for gas None
Forced opening TRUE
Height 96mm
Height of sensor 96mm
Housing Material Plastic
Length 33.35mm
Length of sensor 33.35mm
Material Plastic
Max. temperature +70°C
Min. temperature -25°C
Misc Attribute LS-S11-ZB
Number of contacts as change-over contact 0
Number of contacts as normally closed contact 1
Number of contacts as normally open contact 1
Number of safety auxiliary contacts 1
Output electronic FALSE
Rated operation current Ie at AC-15, 125 V 6A
Rated operation current Ie at AC-15, 230 V 6A
Rated operation current Ie at AC-15, 24 V 10A
Rated operation current Ie at DC-13, 125 V 0.8A
Rated operation current Ie at DC-13, 230 V 0.3A
Rated operation current Ie at DC-13, 24 V 3A
Suitable for safety functions TRUE
Switching current (max.) 6A
Switching function Slow-action switch
Switching function latching FALSE
Switching Voltage 400V
Type of control element Other
Type of electric connection Cable entry metrical
Type of interface None
Type of interface for safety communication None
Width 30mm
Width sensor 30mm
With status indication FALSE
