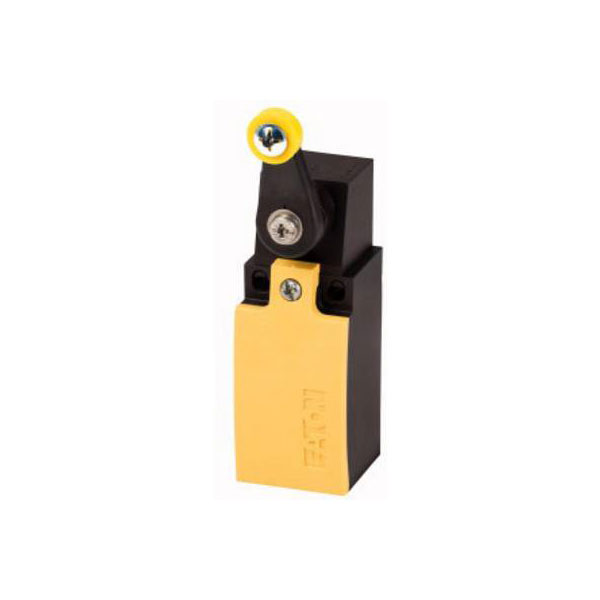

Eaton 106802 LS-S11S/RL Limit switch 400V 6A Lever IP66/IP67

Eaton's LS-S11S/RL is a robust limit switch designed to handle up to 400 V and 6 A of current. It features a lever actuator and offers protection ratings of IP66 and IP67, making it suitable for harsh environments. This switch is ideal for industrial applications where precise position detection and reliable performance are crucial.

Type	Limit switch
Alignment of the control element	Roller cam crossed
Ambient temperature during operating	-25-70°C
Coating housing	Other
Connection	Pull spring
Construction type housing	Cuboid
Degree of protection (IP)	IP66/IP67
Degree of protection (NEMA)	Other
Depth	33.5mm
Diameter sensor	0mm
Dim	(L x W x H) 33.5 x 31 x 61 mm
Durability	>8 x 10 6 cycles
Explosion safety category for dust	None
Explosion safety category for gas	None
Forced opening	TRUE
Height	61mm
Height of sensor	61mm
Housing Material	Plastic
Length	33.5mm
Length of sensor	33.5mm
Material	Plastic
Max. temperature	+70°C
Min. temperature	-25°C
Misc Attribute	LS-S11S/RL
Number of contacts as change-over contact	0
Number of contacts as normally closed contact	1
Number of contacts as normally open contact	1
Number of safety auxiliary contacts	1
Operation type	Lever
Output electronic	FALSE
Rated operation current Ie at AC-15, 125 V	6A
Rated operation current Ie at AC-15, 230 V	6A
Rated operation current Ie at AC-15, 24 V	6A
Rated operation current Ie at DC-13, 125 V	0.8A
Rated operation current Ie at DC-13, 230 V	0.3A
Rated operation current Ie at DC-13, 24 V	3A
Suitable for safety functions	TRUE
Switching current (max.)	6A
Switching function	Quick-break switch
Switching function latching	FALSE
Switching voltage	400V
Type of control element	Roller lever
Type of electric connection	Cable entry metrical
Type of interface	None
Type of interface for safety communication	None
Width	31mm
Width sensor	31mm
With status indication	FALSE
