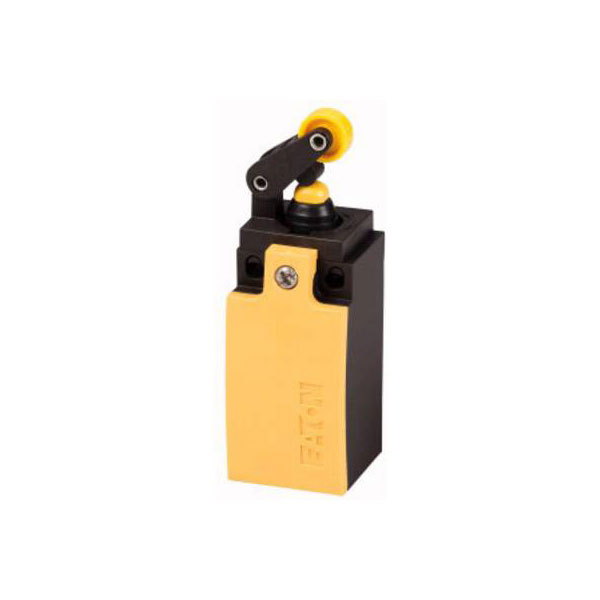

The Eaton 106800 LS-S11S/L limit switch is designed for operation at 400 V and up to 6 A, featuring a lever mechanism. With an IP66/IP67 rating, it is suitable for use in harsh environments. Common applications include industrial automation, machinery position sensing, and safety interlocking.
| Type |
Limit switch |
| Alignment of the control element |
Other |
| Ambient temperature during operating |
-25-70°C |
| Coating housing |
Other |
| Connection |
Screw terminal |
| Construction type housing |
Cuboid |
| Degree of protection (IP) |
IP66/IP67 |
| Degree of protection (NEMA) |
Other |
| Depth |
33.5mm |
| Diameter sensor |
0mm |
| Dim |
(L x W x H) 33.5 x 31 x 61 mm |
| Durability |
>8 x 10 6 cycles |
| Explosion safety category for dust |
None |
| Explosion safety category for gas |
None |
| Forced opening |
TRUE |
| Height |
61mm |
| Height of sensor |
61mm |
| Housing Material |
Plastic |
| Length |
33.5mm |
| Length of sensor |
33.5mm |
| Material |
Plastic |
| Max. temperature |
+70°C |
| Min. temperature |
-25°C |
| Misc Attribute |
LS-S11S/L |
| Number of contacts as change-over contact |
0 |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of safety auxiliary contacts |
1 |
| Operation type |
Lever |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 125 V |
6A |
| Rated operation current Ie at AC-15, 230 V |
6A |
| Rated operation current Ie at AC-15, 24 V |
6A |
| Rated operation current Ie at DC-13, 125 V |
0.8A |
| Rated operation current Ie at DC-13, 230 V |
0.3A |
| Rated operation current Ie at DC-13, 24 V |
3A |
| Suitable for safety functions |
TRUE |
| Switching current (max.) |
6A |
| Switching function |
Quick-break switch |
| Switching function latching |
FALSE |
| Switching Voltage |
400V |
| Type of control element |
Roller lever |
| Type of electric connection |
Cable entry metrical |
| Type of interface |
None |
| Type of interface for safety communication |
None |
| Width |
31mm |
| Width sensor |
31mm |
| With status indication |
FALSE |
